The Nanlux Evoke 2400B Bi-Color LED Monolight is a versatile and robust 2400 W lighting solution, bringing excellent color rendering and flexibility for professionals in photography and filmmaking – whether in the studio or on location. It offers a wide color temperature range from 2700 to 6500K with a high CRI of 96 and TLCI of 97, ensuring accurate color rendering, while the green and magenta adjustments (+/- 80) ensure perfect color tuning.
The light’s brightness can be finely adjusted from 0 to 100% with various dimming curves like linear and S-curve for consistent color output. Compact at 16.8 x 12.5 x 10.4″, this monolight delivers a strong output of 41,910 lux at 3 meter / 9.8 ft. It features flexible control options, including DMX/RDM, wired DMX, and wireless controls through the NANLINK app, LumenRadio, or Bluetooth.
The Evoke 2400B is designed for both studio and location use, with an IP55 rating for weather resistance. A 45° reflector, an adjustable yoke, a 7,5 meter / 24.6 ft DC cable and a super clamp is included. It’s ready for global use with a 100-240 VAC power supply, and it offers a Dual Draw Selector for 75% power at 15A or full power at 20A.
Key features
For studio and film / TV production
Output: 41,910 Lux at 9.8 ft at 5600K
2700-6500K CCT
+/- 80 G/M Tint
CRI 96 | TLCI 97
AC Power
Onboard, DMX, Bluetooth, App Control
IP55 Weatherproof
In the box
Nanlux Evoke 2400B Bi-Color LED monolight
Yoke

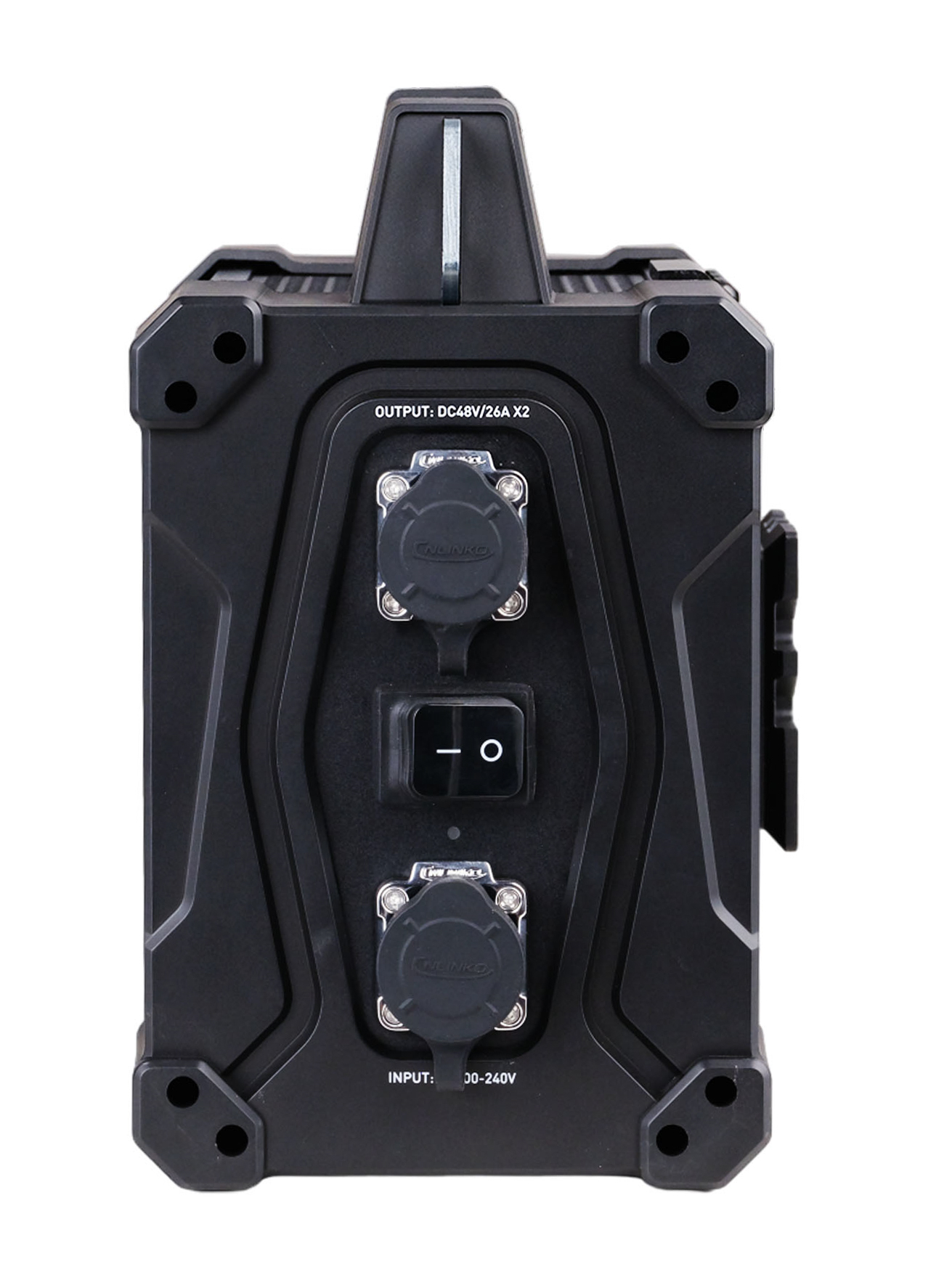

Power supply
45° Reflector
USB Drive
Quick release clamp
Remote controller
DC connection cable (7,5 m / 24.6 ft)
AC power cable (3 m / 9.8 ft)
Technical Data
| Model | Evoke 2400B |
|---|---|
| Rated Power | 2400W |
| Input Voltage/Current | DC48V/26A × 2, AC100-240V 50/60Hz 26A Max |
| CCT | 2700K-6500K（ G/M ± 80） |
| CRI | Average 96 |
| TLCI | Average 97 |
| TM-30Rf | Average 95 |
| TM-30Rg | Average 100 |
| SSI（3200K) | 84 |
| SSI（5600K) | 74 |
| Dimming | 0-100% stepless 0.1% from 0-100% |
| IP Rating | IP55 |
| Control | On-board, Wire Control, Remote Controller, NANLINK APP, DMX/RDM, LumenRadio CRMX, Art-Net/sACN |
| Special FX | CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/File, Bad Bulb, Firework, Explosion, Welding |
| Size | Light Fixture(without COB cap)：427.3 × 316.4 × 265.1mm / 16.8 × 12.5 × 10.4″ Power Supply：389.2 × 172.2 × 268.3mm / 15.3 × 6.8 × 10.6″ |
| Weight | Light Fixture (without COB cap)：15kg / 33.1lb Power Supply：11.58kg / 25.53lb |
| Certifications | BIS, CE, FCC-ID, RoHS, UKCA |
Illumination table of the Nanlux Evoke 2400B
Evoke 2400B (Light Only)
| Distance | 3 meter | 5 meter | 7 meter | 9 meter |
|---|---|---|---|---|
| 2700K | 7910 lux / 735 fc | 3162 lux / 294 fc | 1686 lux / 157 fc | 1054 lux / 98 fc |
| 3200K | 8732 lux / 811 fc | 3478 lux / 323 fc | 1848 lux / 172 fc | 1152 lux / 107 fc |
| 4300K | 9671 lux / 898 fc | 3858 lux / 358 fc | 2071 lux / 192 fc | 1263 lux / 117 fc |
| 5600K | 9584 lux / 905 fc | 3801 lux / 353 fc | 2028 lux / 188 fc | 1266 lux / 118 fc |
| 6500K | 9745 lux / 905 fc | 3873 lux / 360 fc | 2099 lux / 195 fc | 1275 lux / 118 fc |
Evoke 2400B with 45° Reflector
| Distance | 3 meter | 5 meter | 7 meter | 9 meter |
|---|---|---|---|---|
| 2700K | 32140 lux / 2986 fc | 10770 lux / 1001 fc | 5604 lux / 521 fc | 3412 lux / 317 fc |
| 3200K | 36710 lux / 3410 fc | 12270 lux / 1140 fc | 6381 lux / 593 fc | 3872 lux / 360 fc |
| 4300K | 41800 lux / 3883 fc | 14030 lux / 1303 fc | 7242 lux / 673 fc | 4381 lux / 407 fc |
| 5600K | 41910 lux / 3893 fc | 14070 lux / 1307 fc | 7254 lux / 674 fc | 4401 lux / 409 fc |
| 6500K | 36090 lux / 3353 fc | 12160 lux / 1130 fc | 6276 lux / 583 fc | 3839 lux / 357 fc |
