What’s in the box?

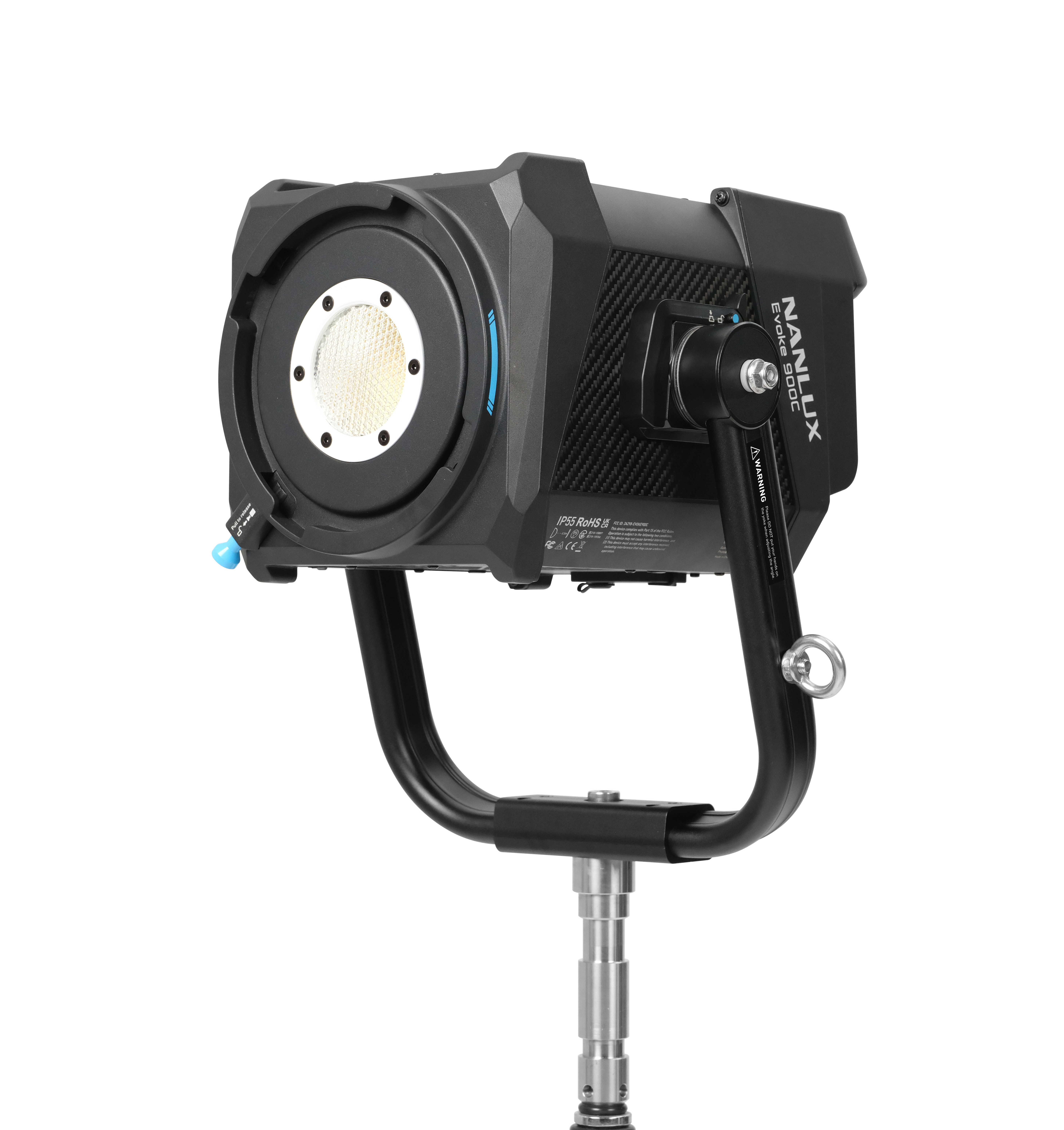

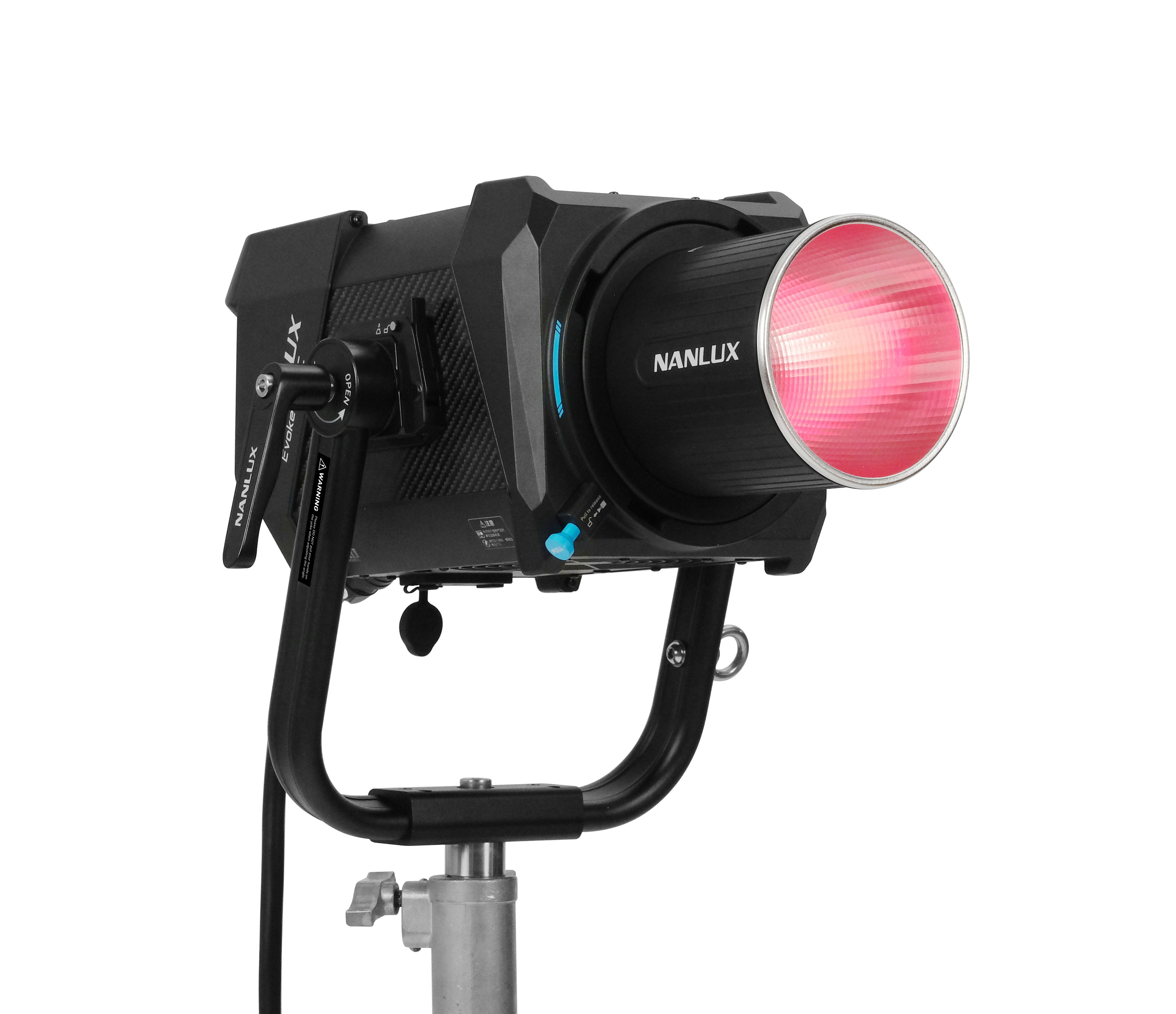

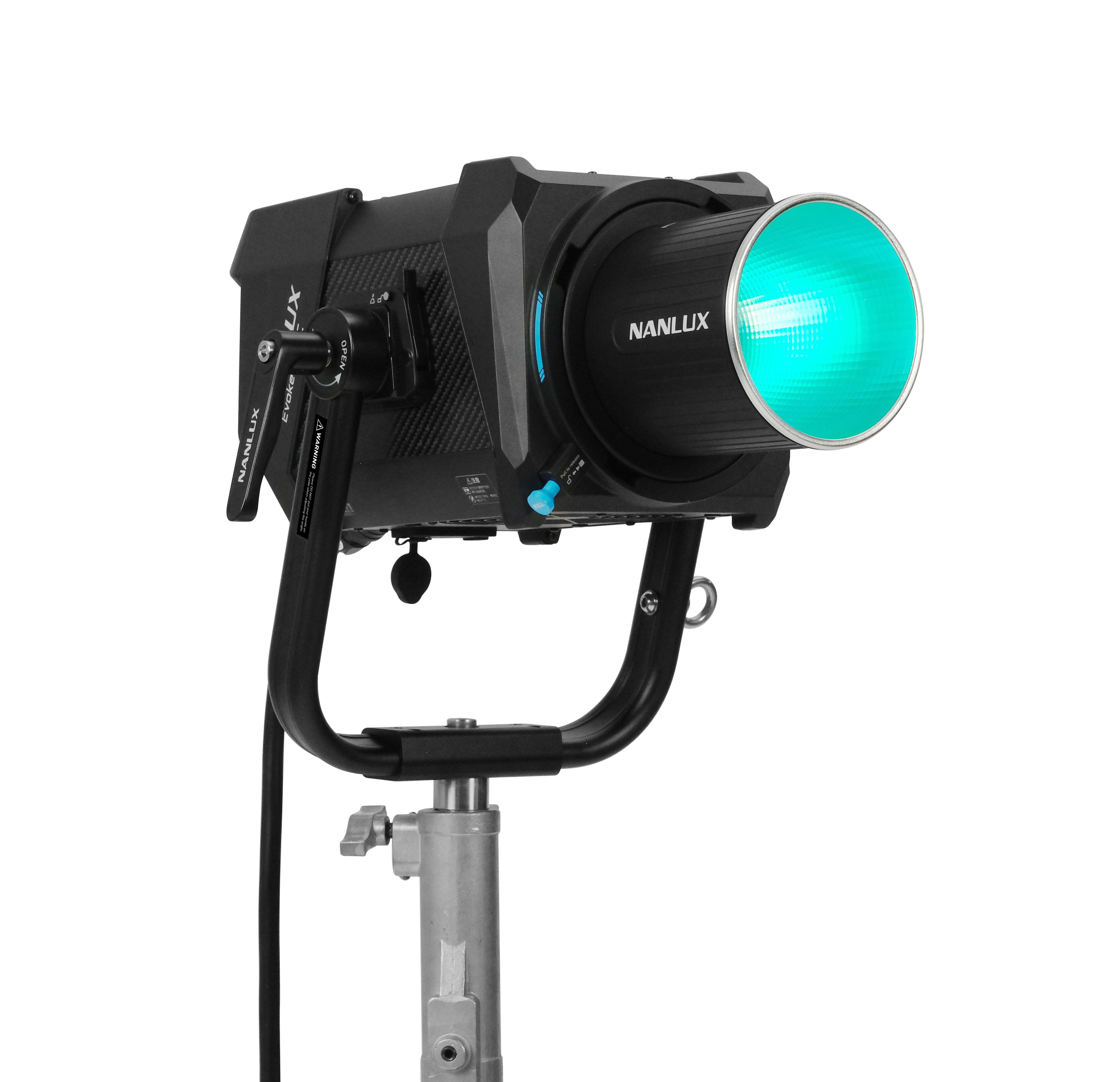

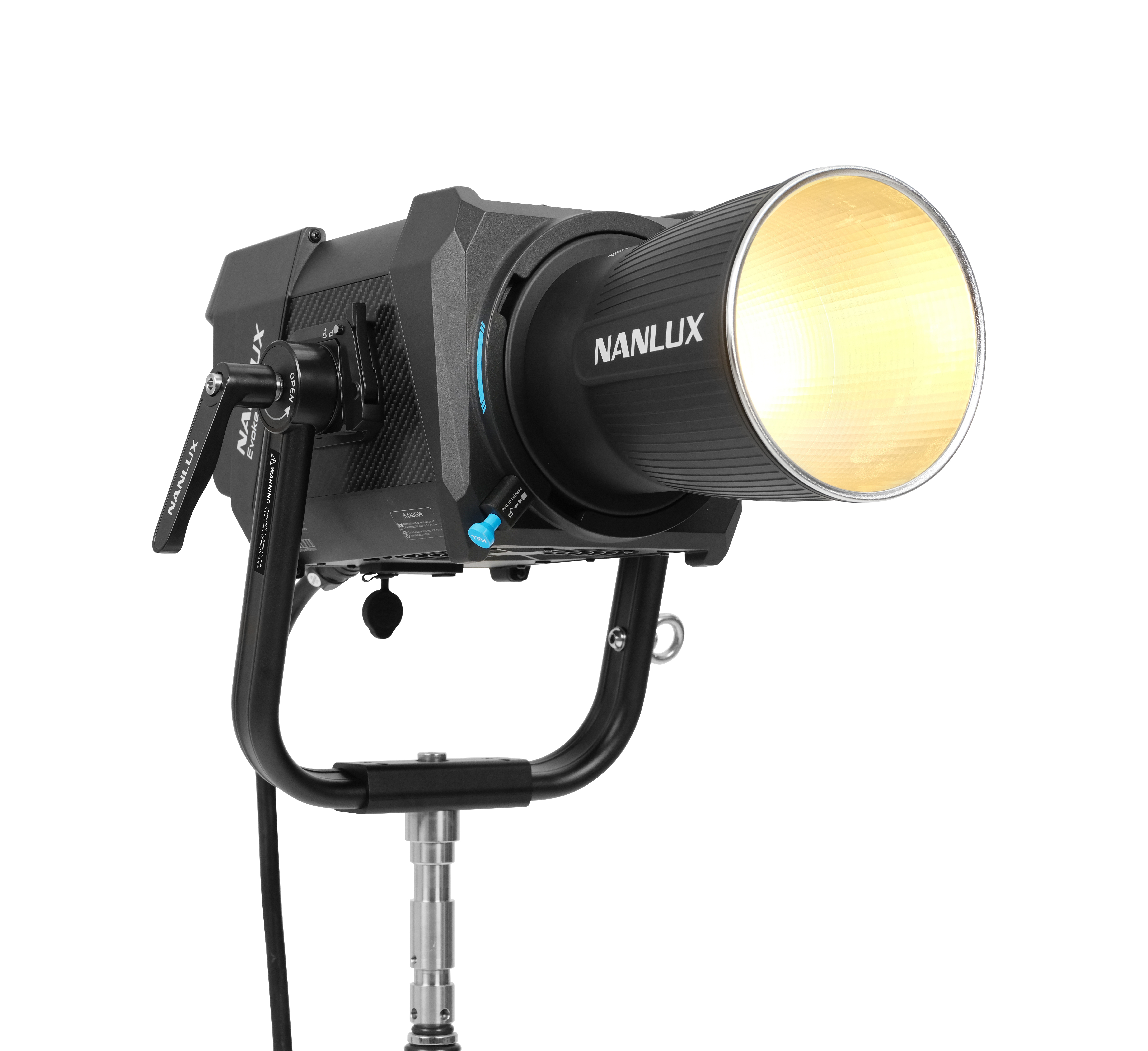

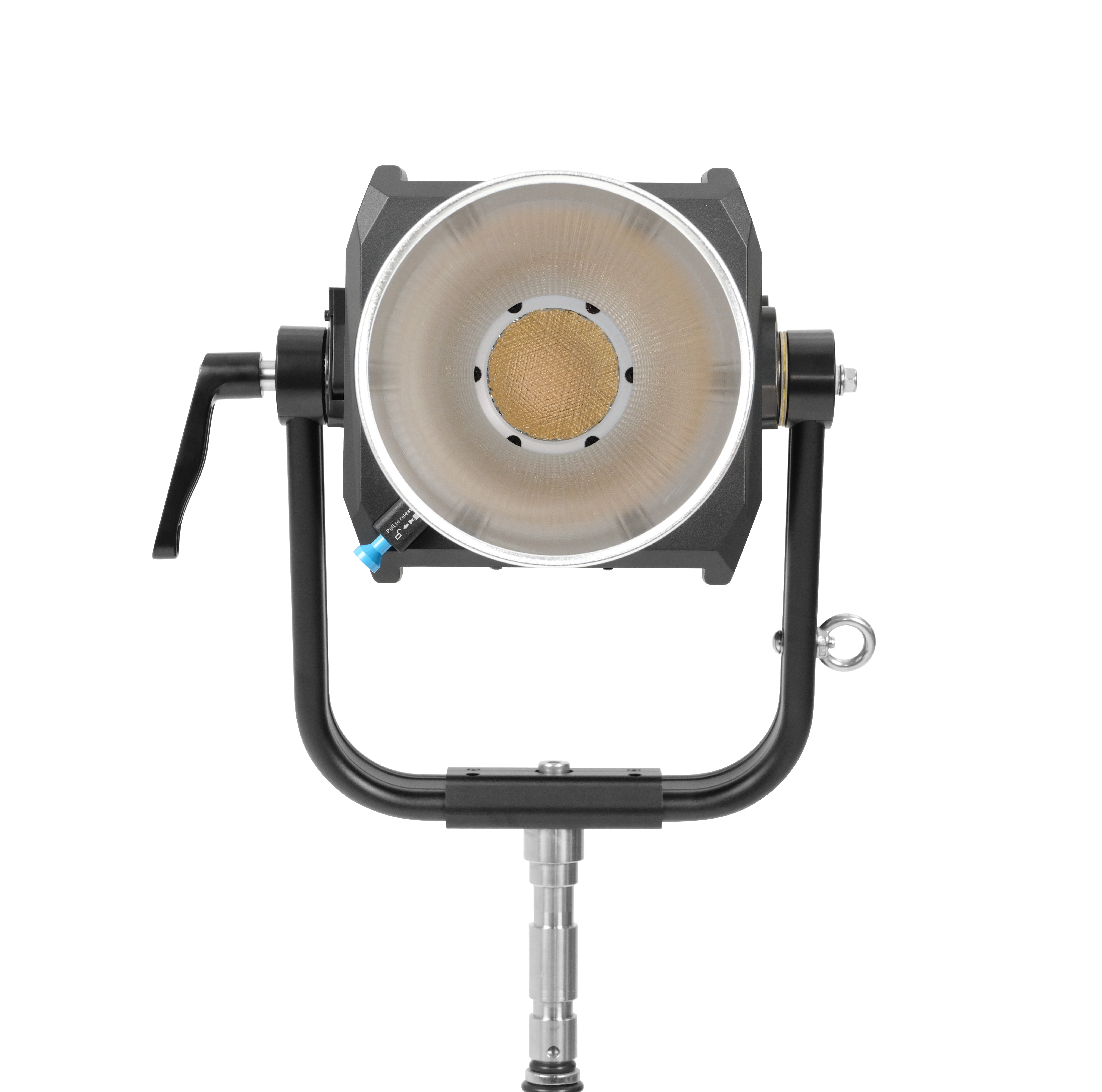

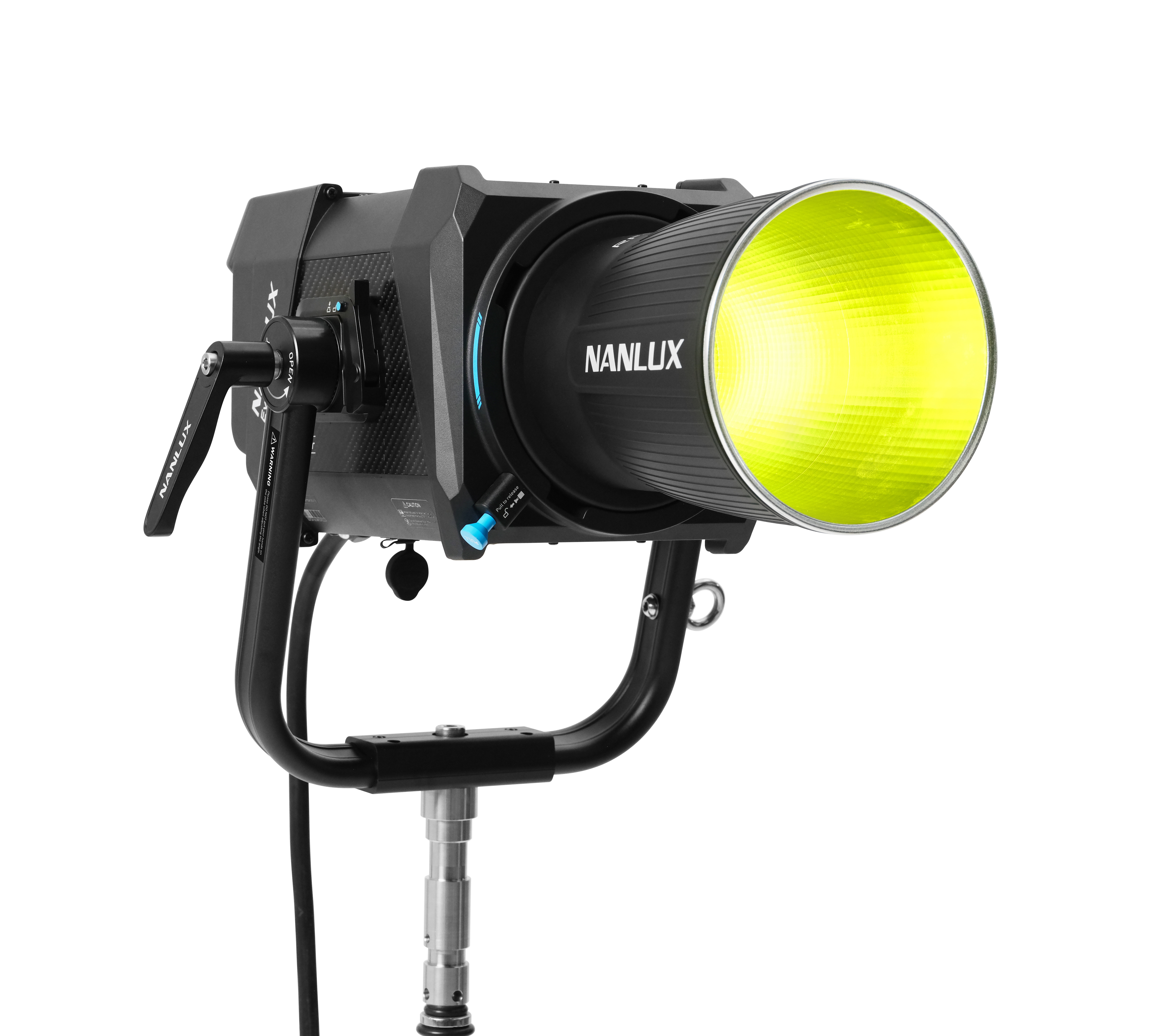

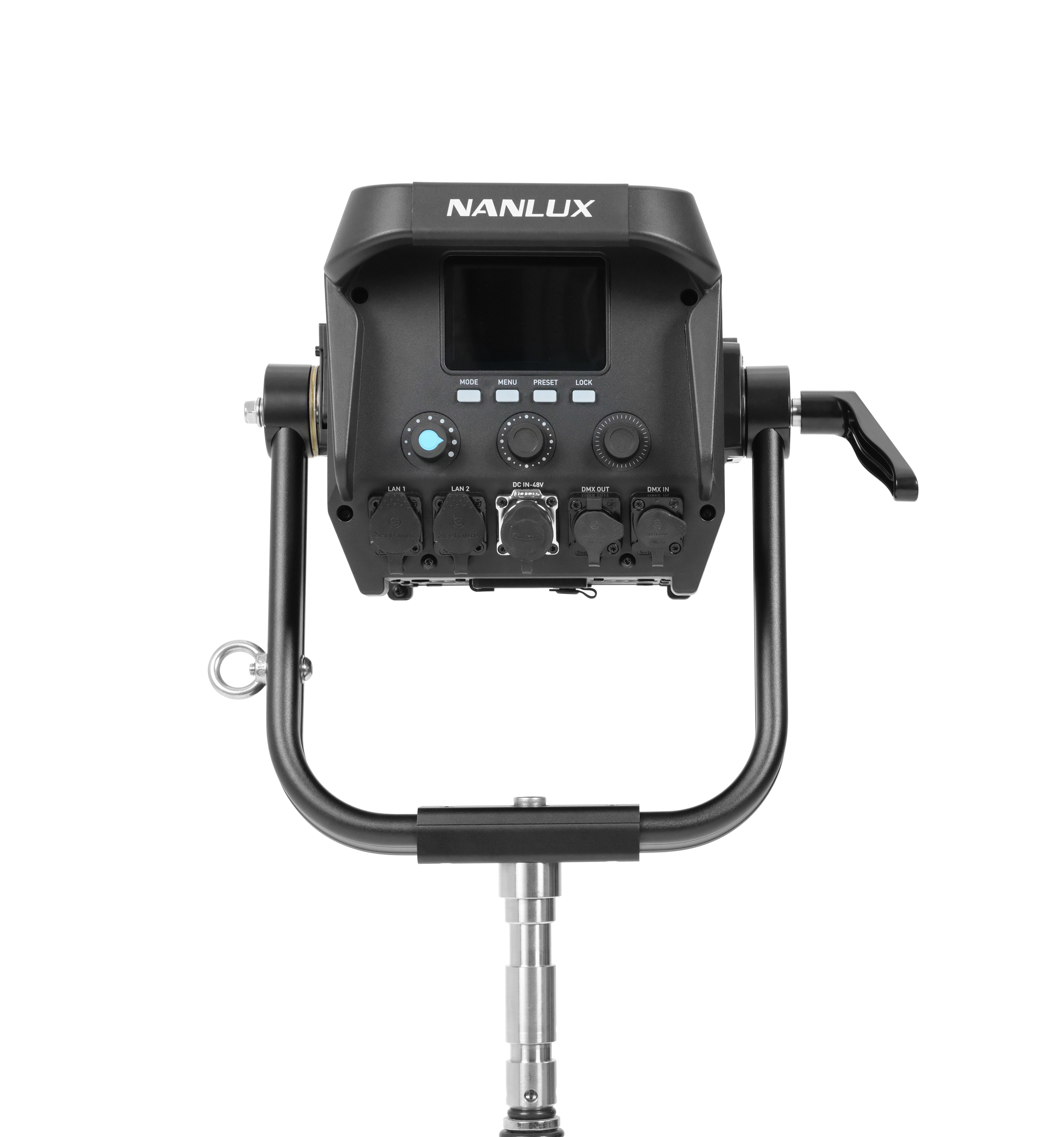

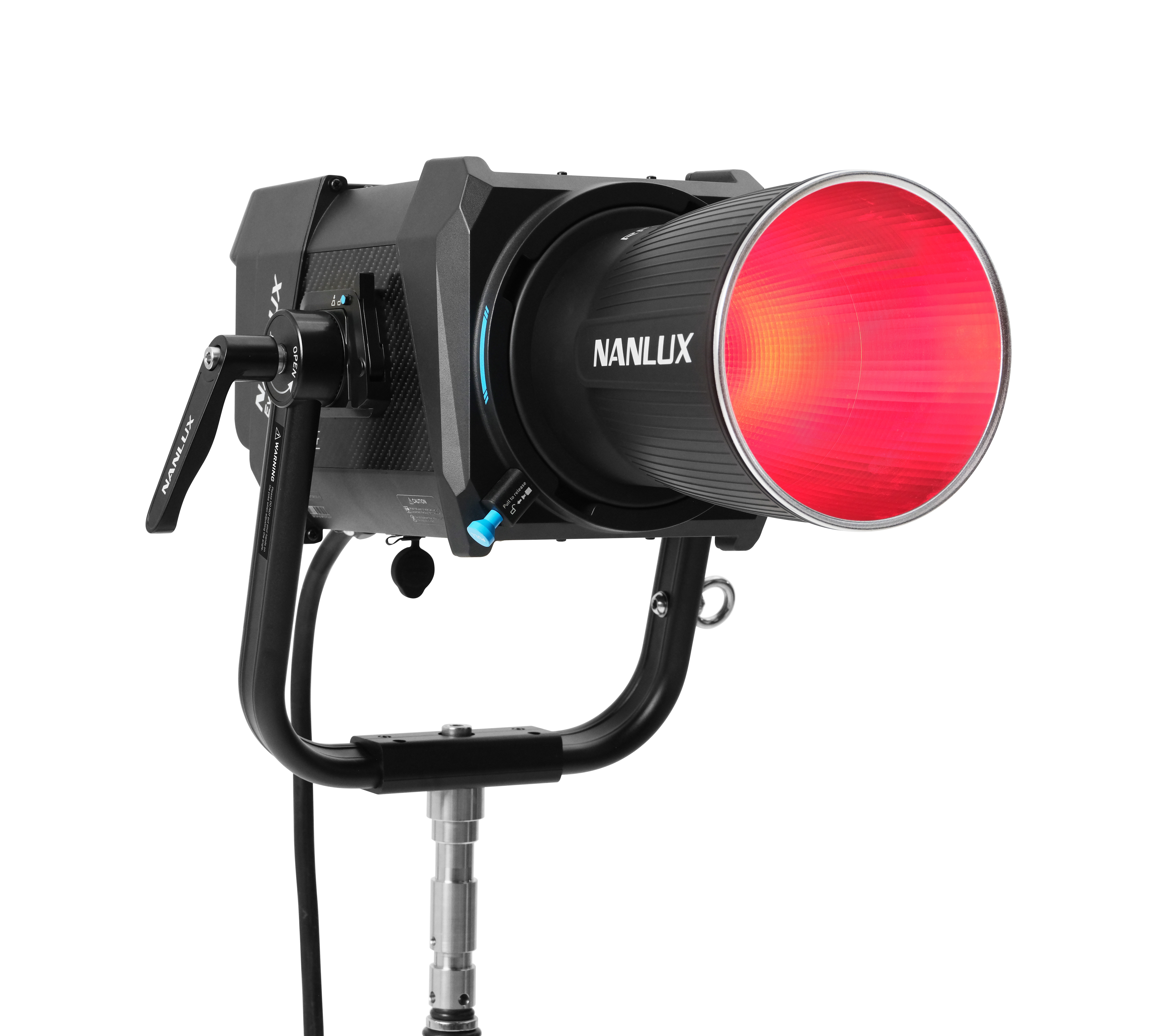

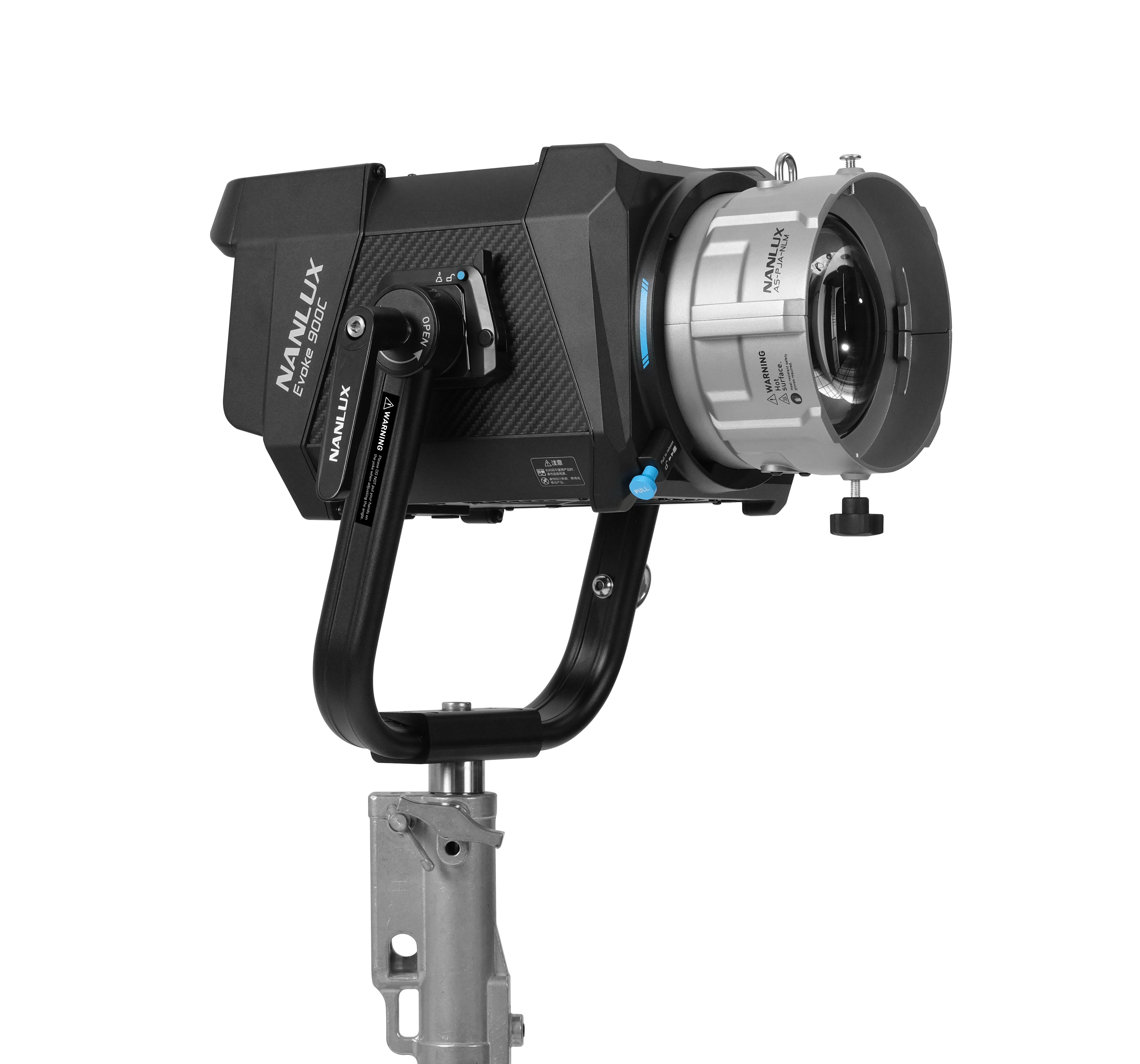

Evoke 900C x1

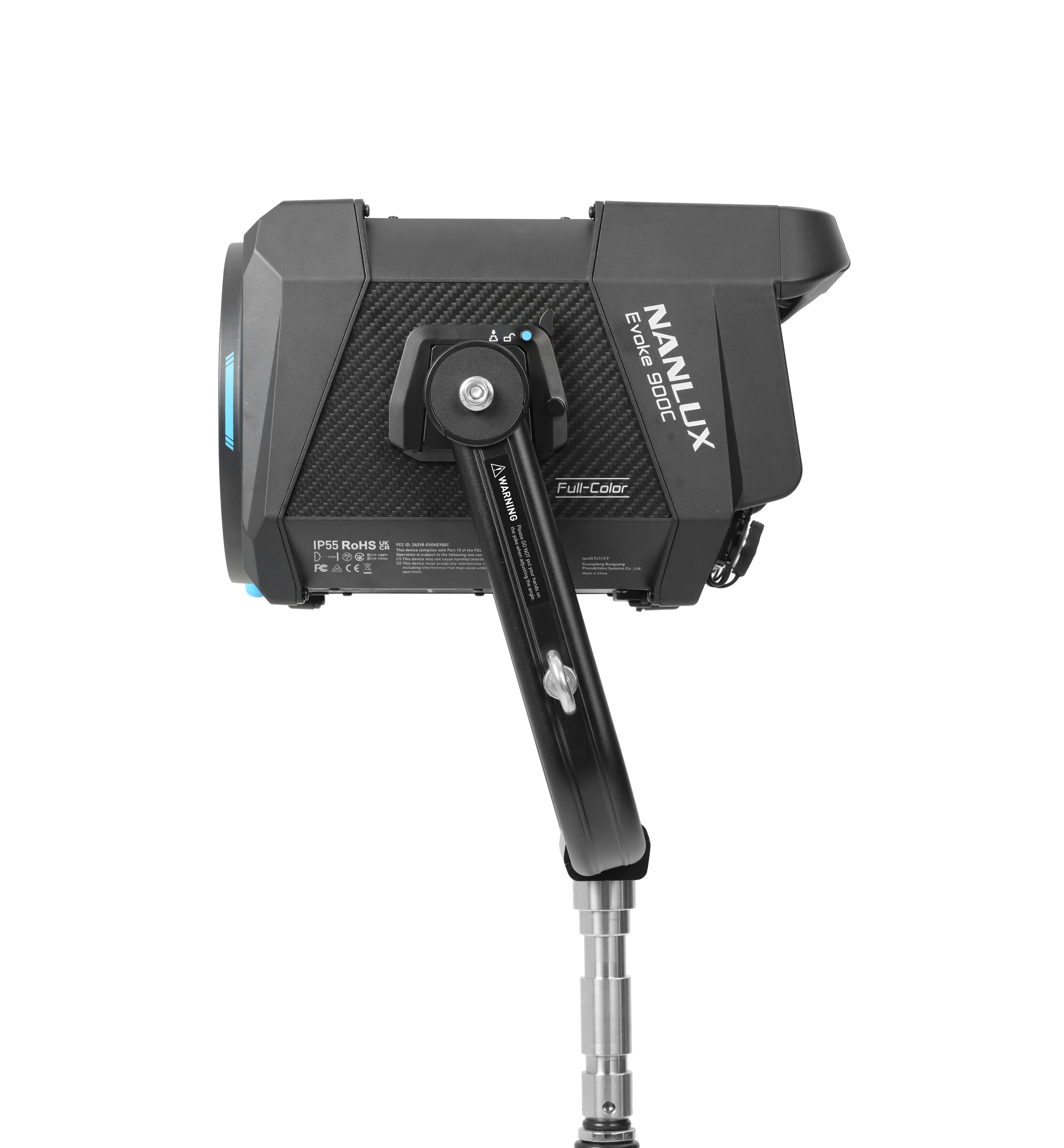

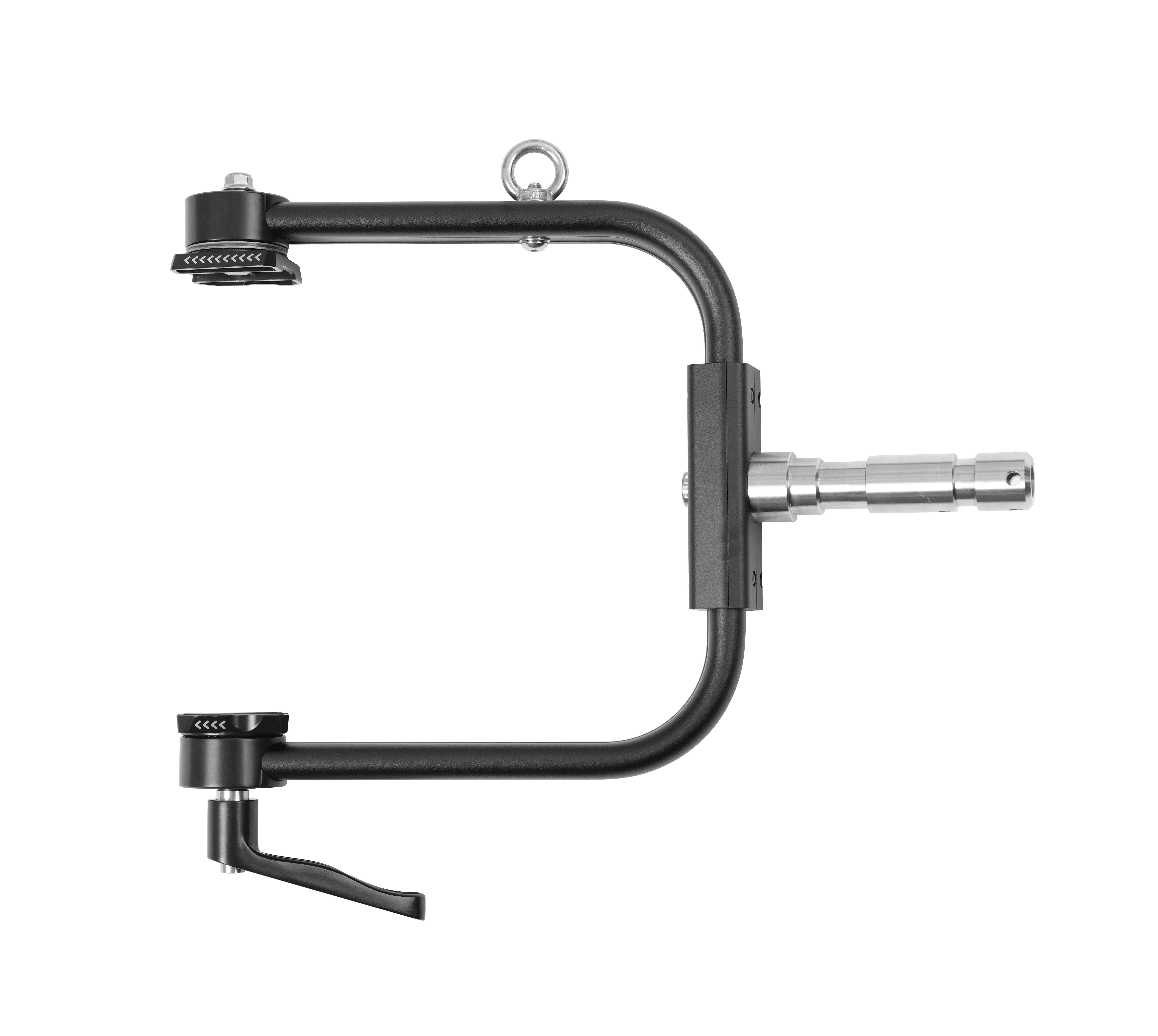

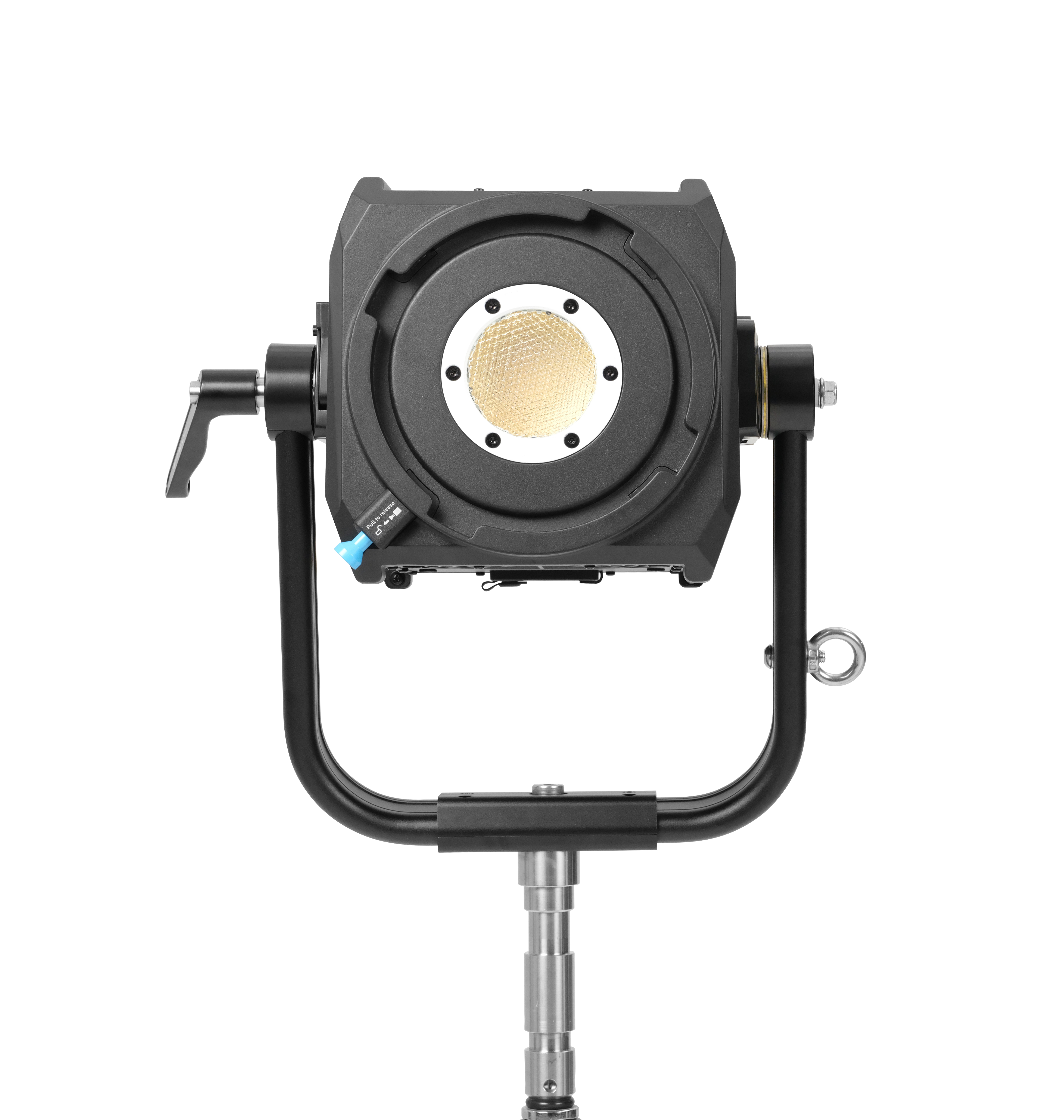

Yoke x1

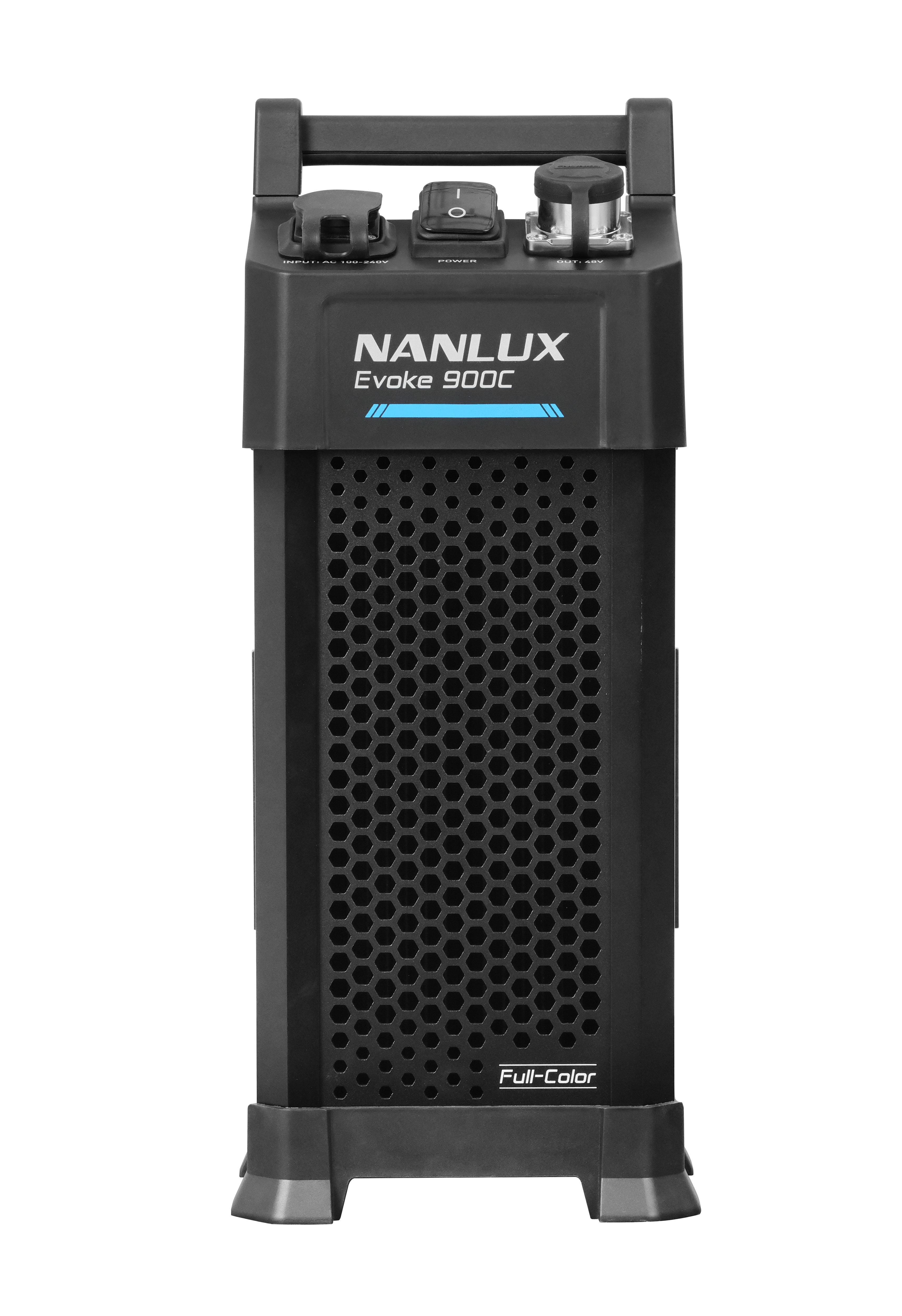

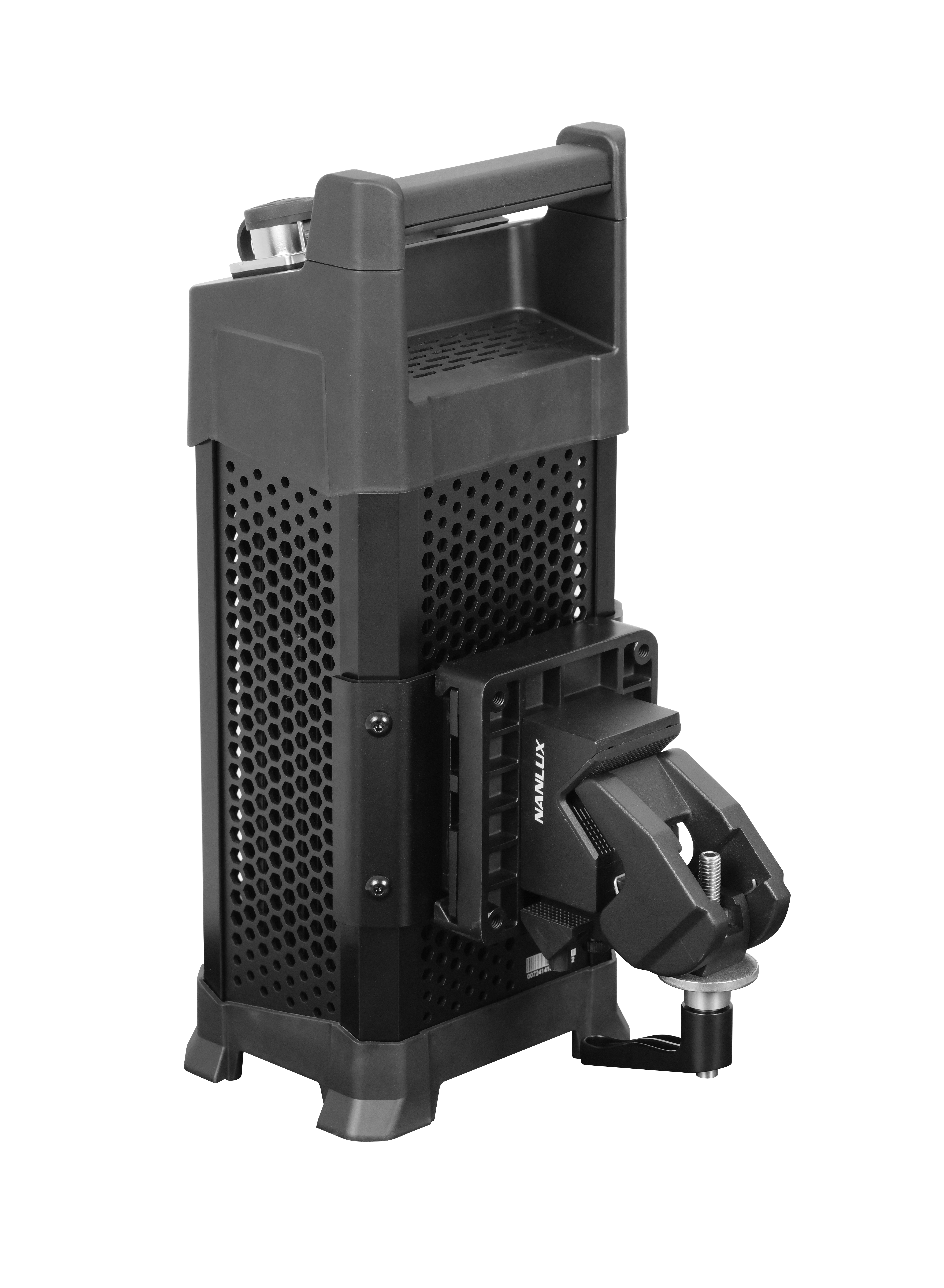

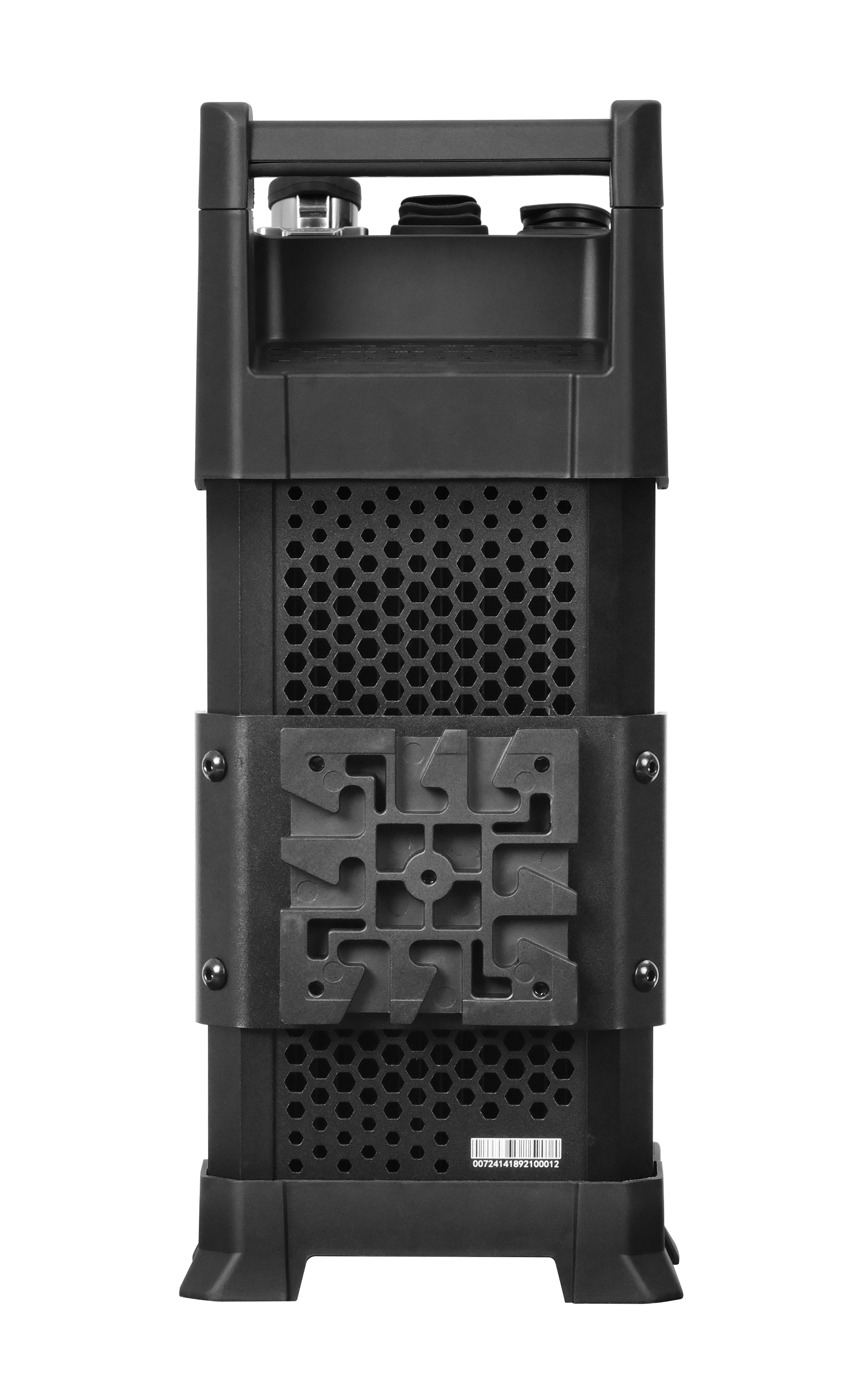

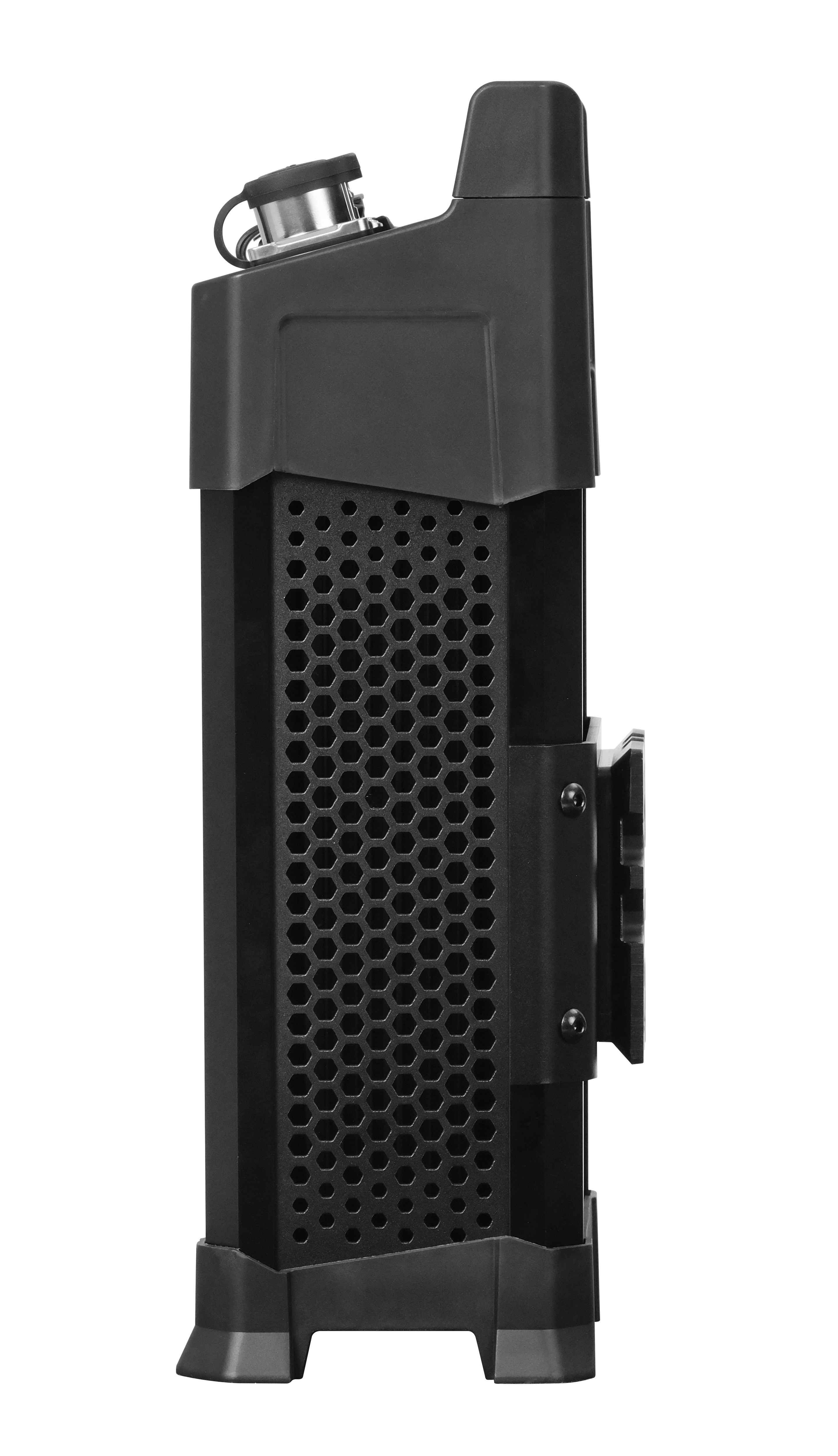

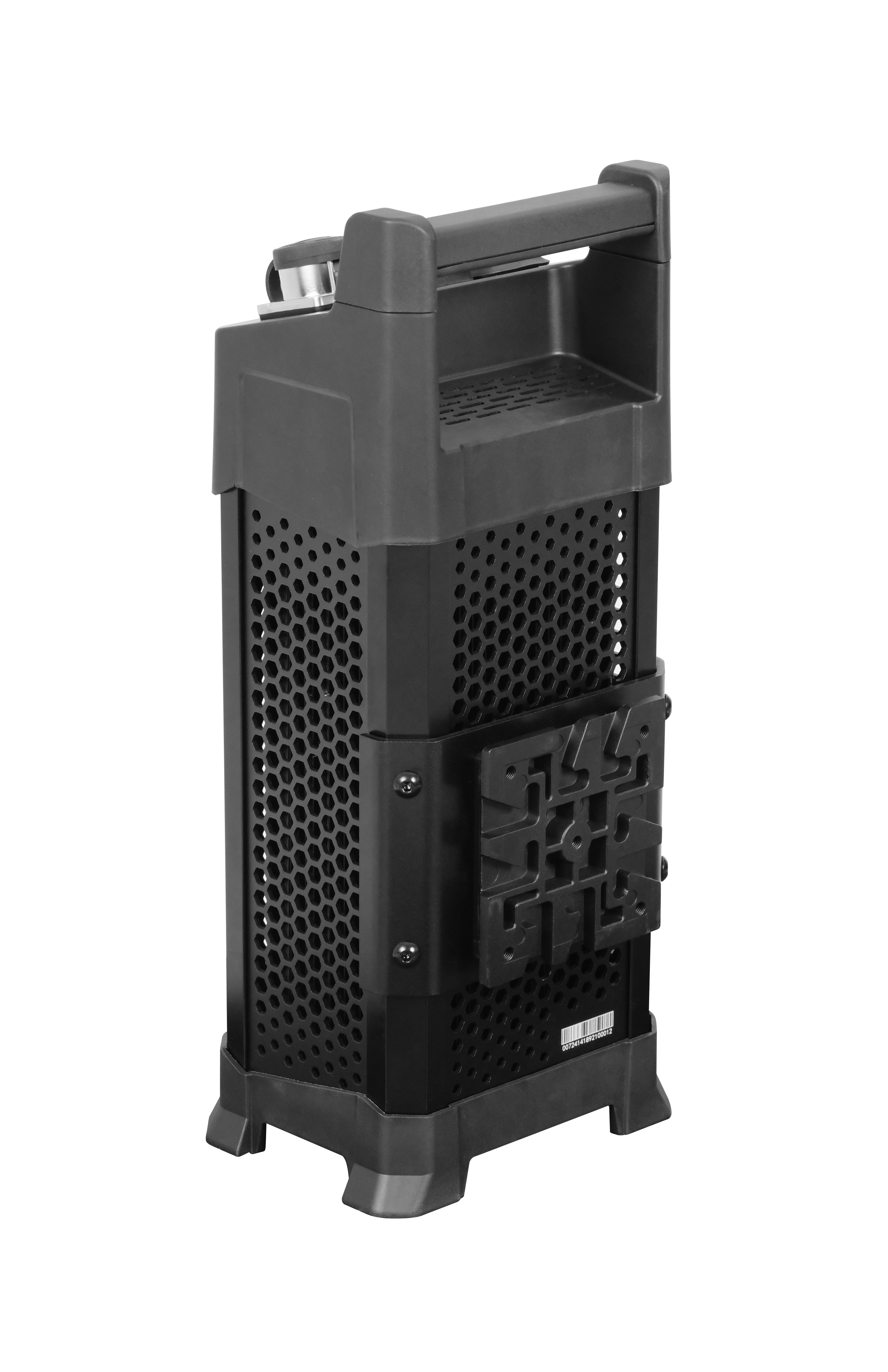

Power Supply x1

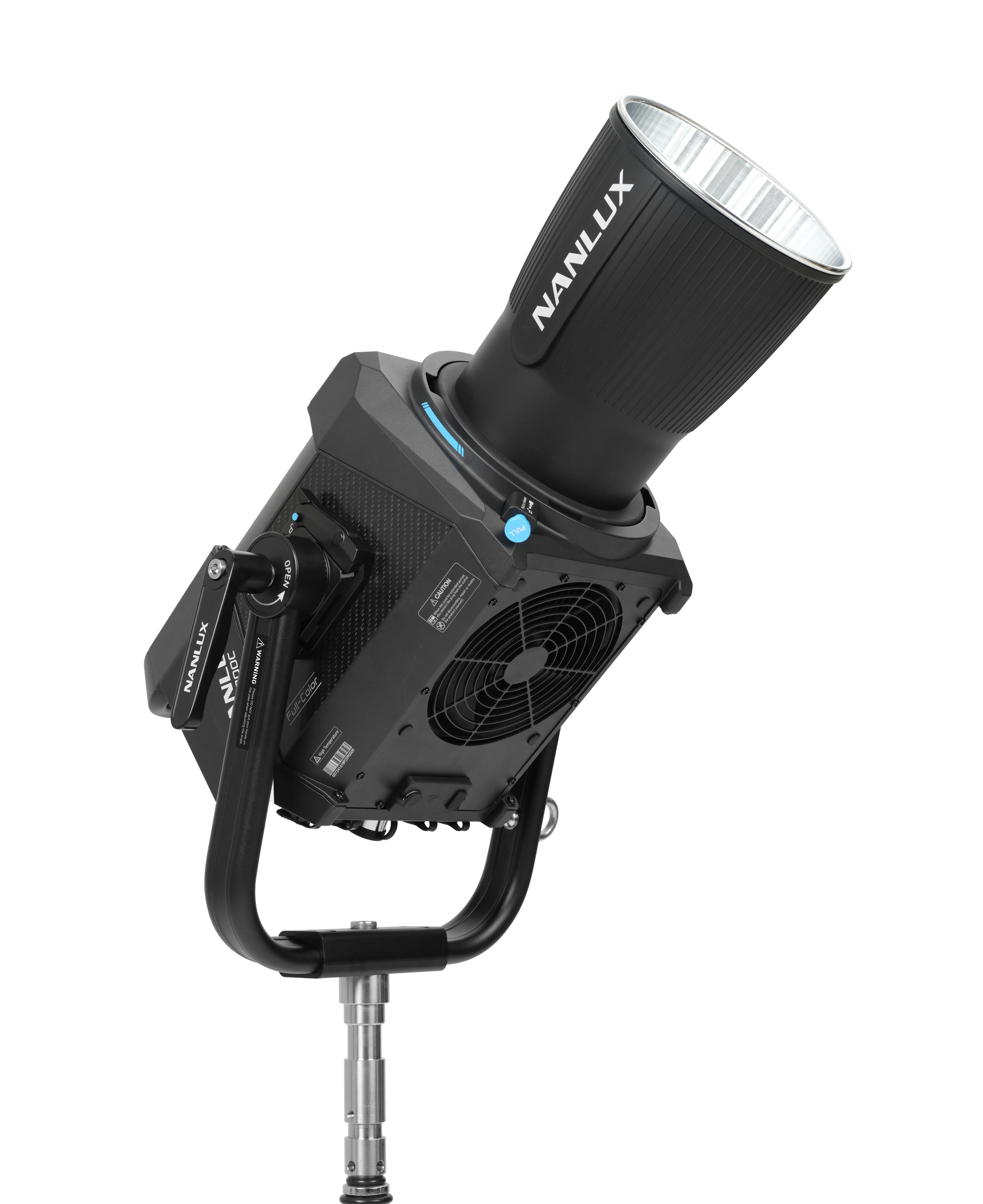

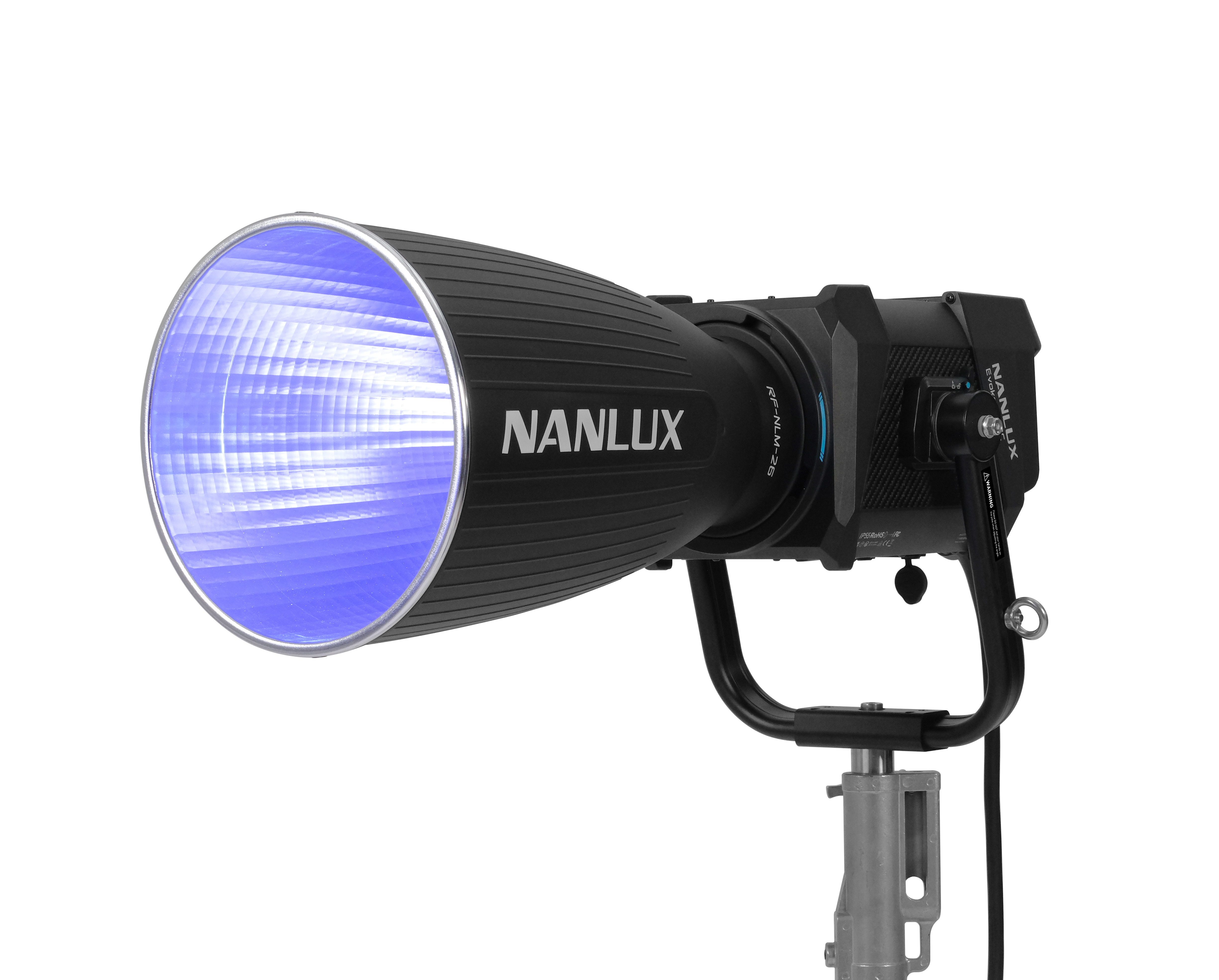

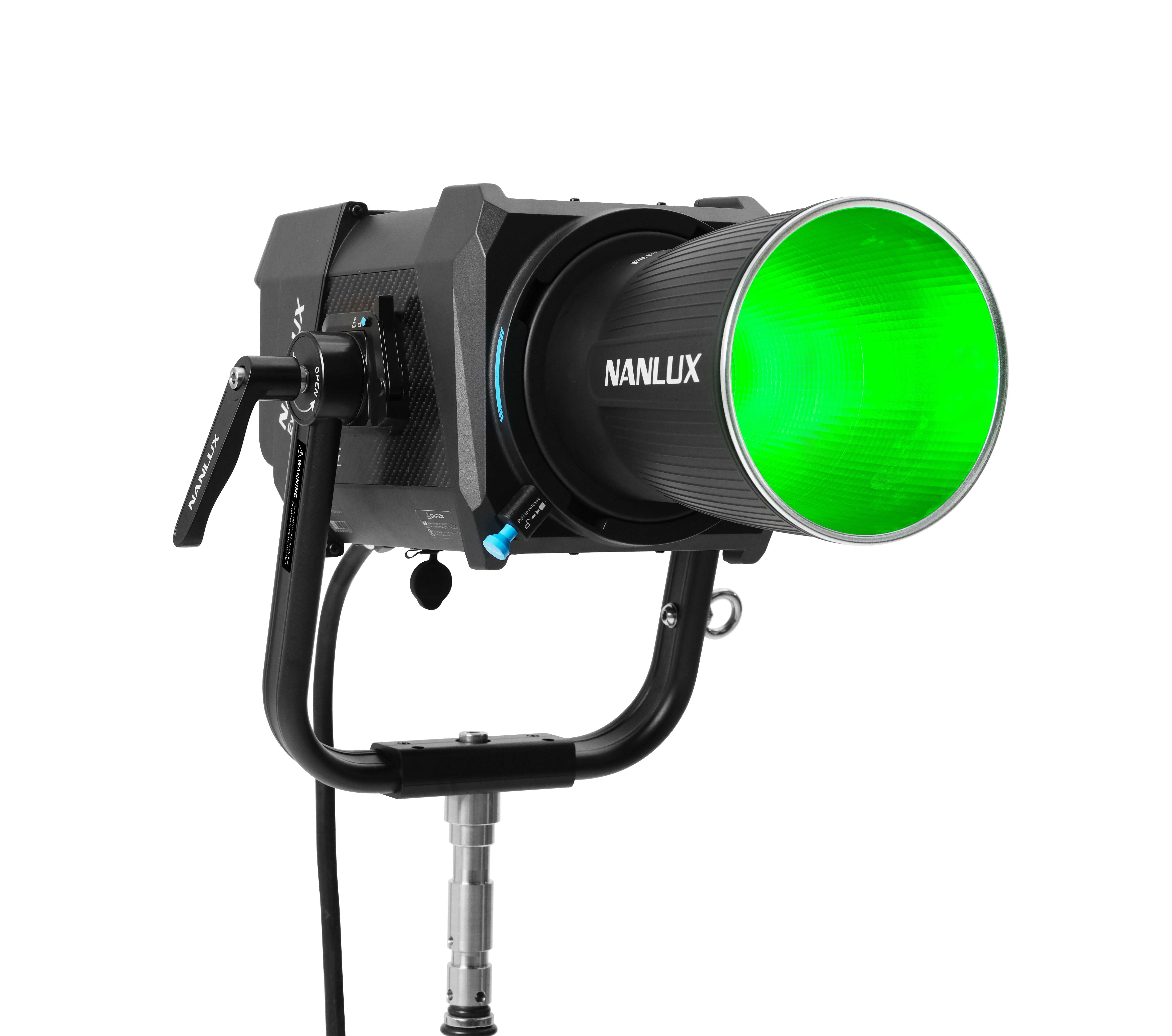

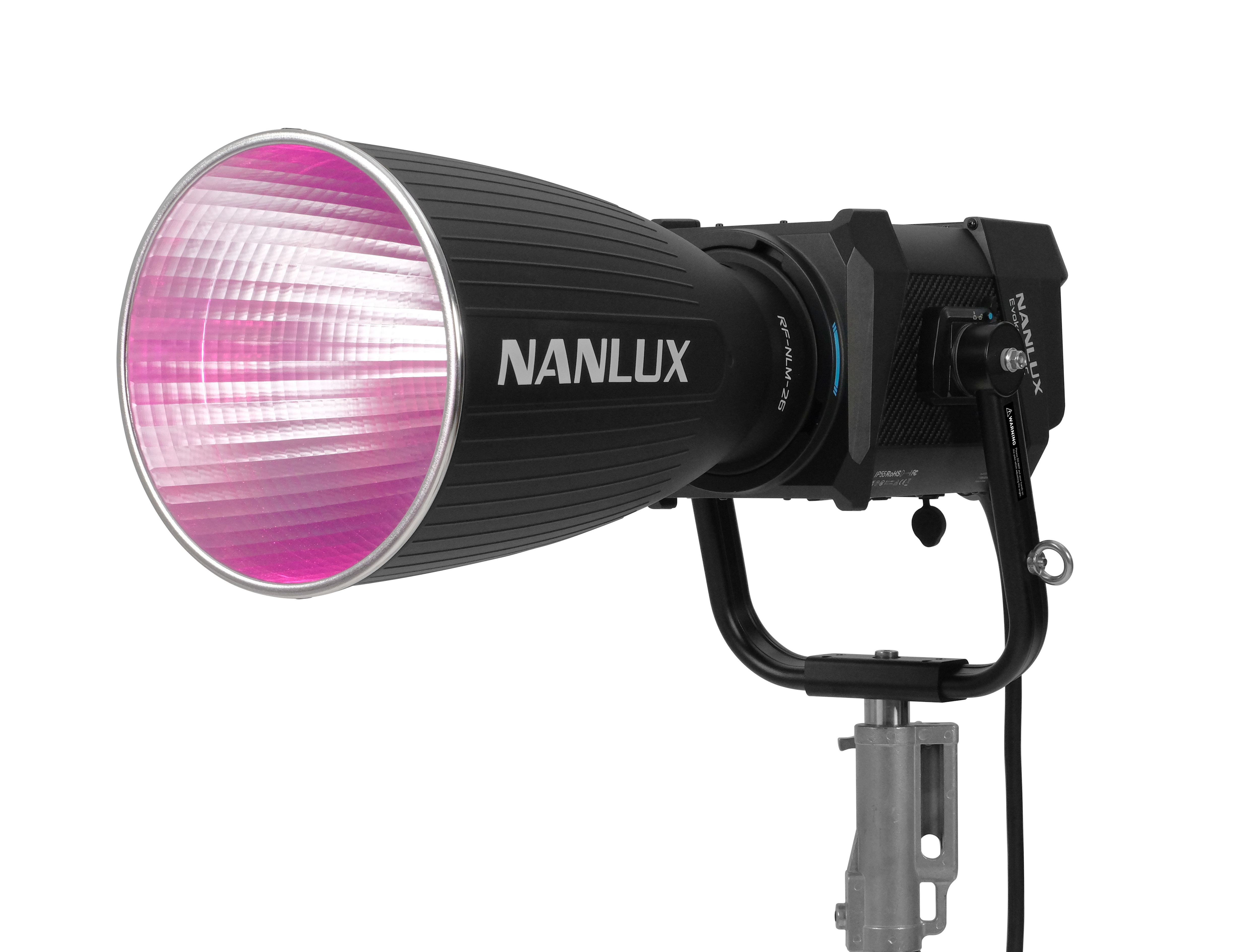

RF-NLM-45 Reflector x1

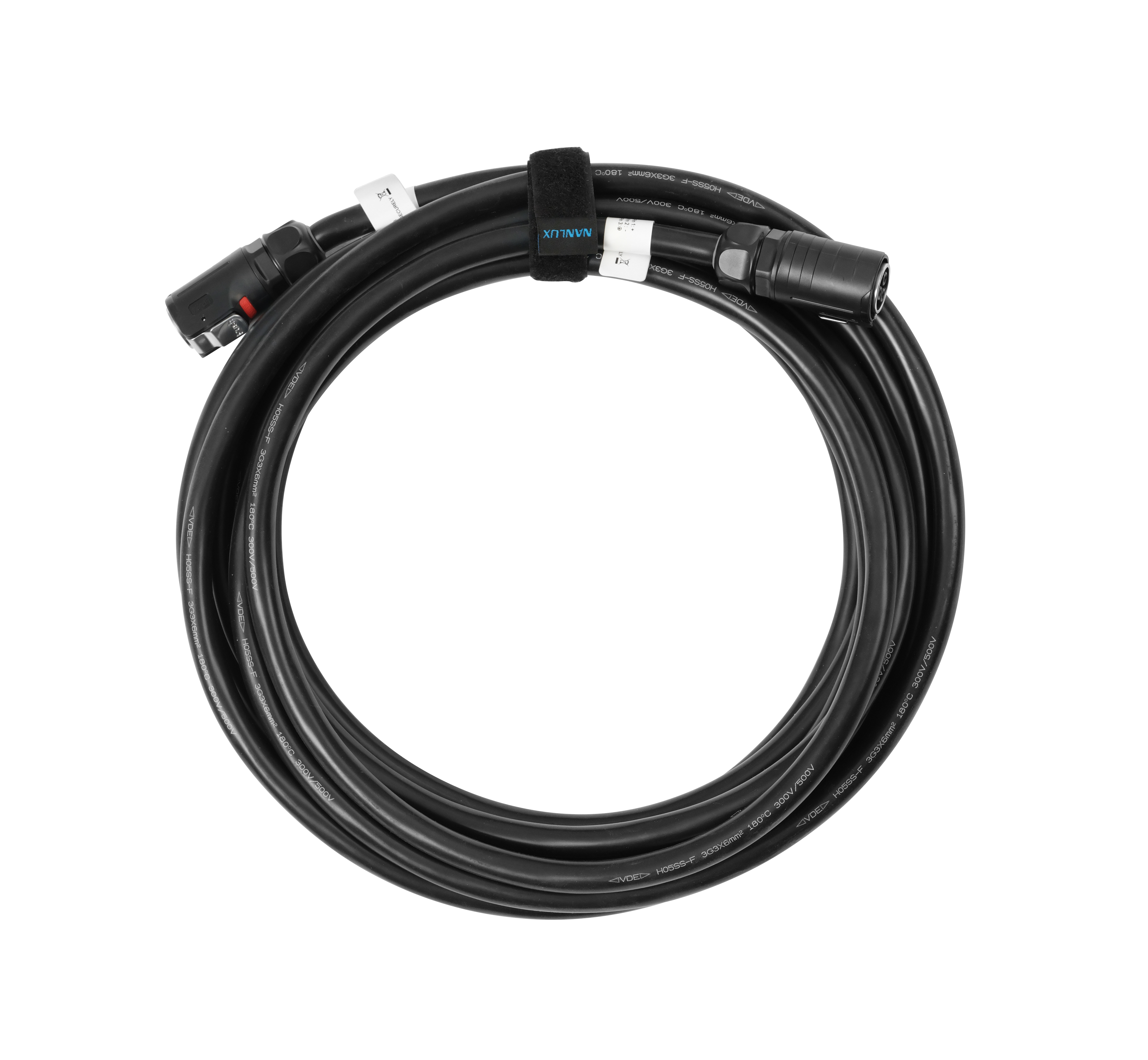

DC Connection Cable 7.5M x1

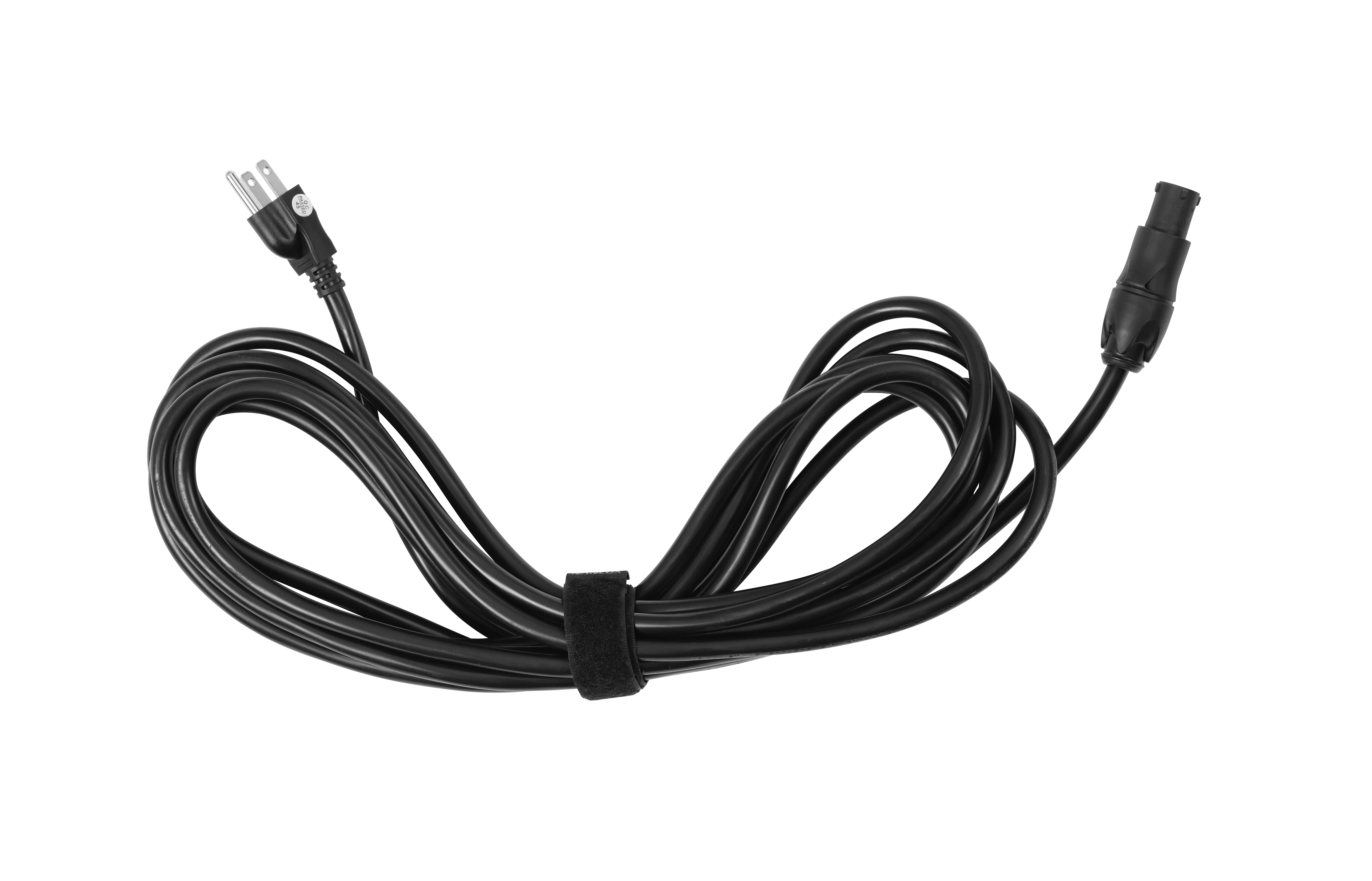

AC Power Cable 6M x1

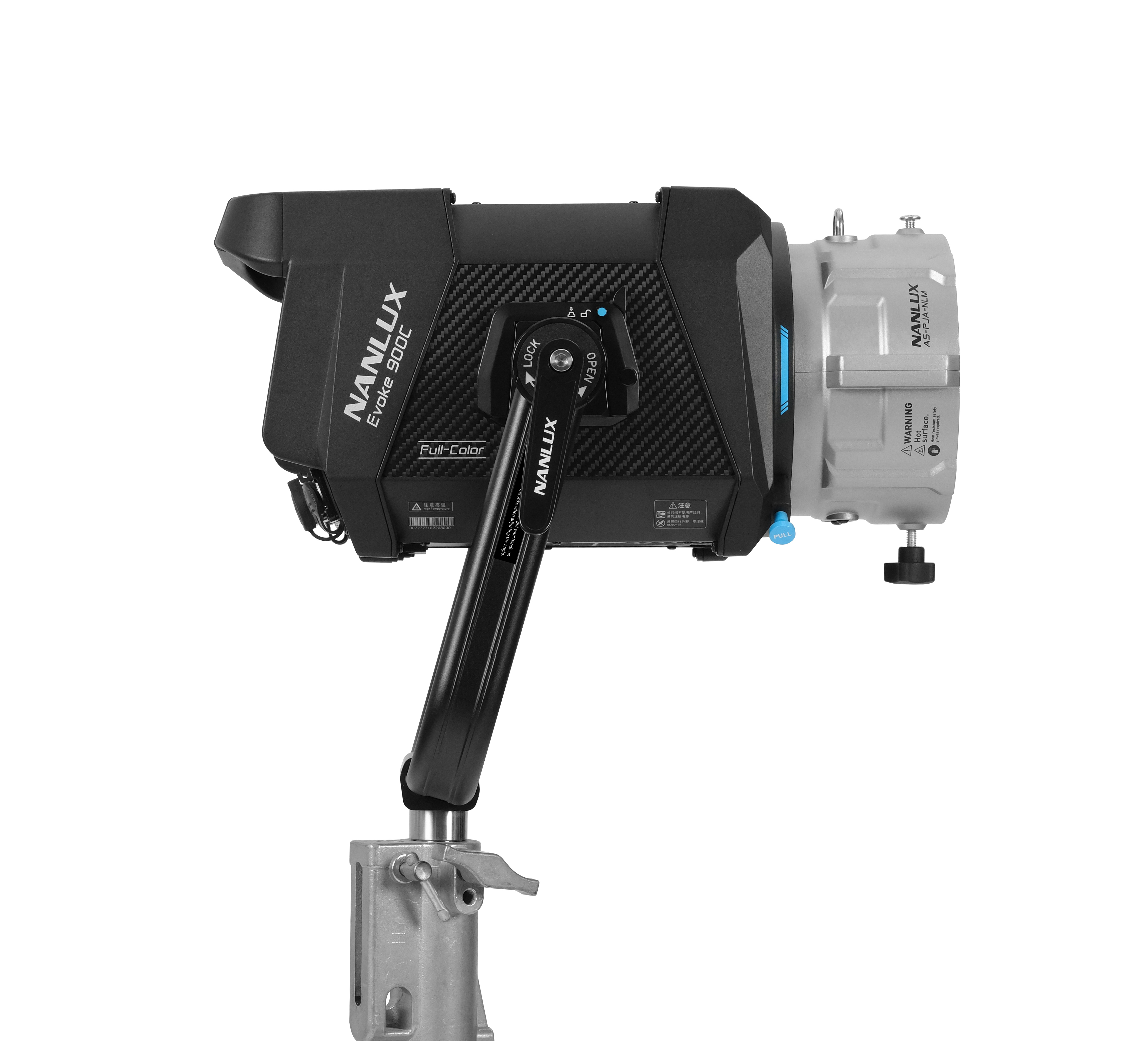

AS-CP-QR-EV Quick Release Clamp x1
WS-RC-C2 2.4G Remote Controller x1
USB Flash Drive x1 | User Manual x1
CC-ST-EV900C Trolley Case ×1
Specifications
| Item No. | Evoke 900C ST-Kit |
| EAN code | 6949987491606 |
| Rated Power | 940W |
| Input Voltage/Current | DC 48V/18.75A Max AC 100-240V 50/60Hz |
| Dimming | 0-100%, 0.1% increment |
| CRI | Average 96 |
| TLCI | Average 96 |
| CCT | 1800K-20000K (G/M±200) |
| TM-30 Rf | Average 94 |
| TM-30 Rg | Average 100 |
| SSI | Average 70 |
| IP Rating | IP55 |
| Product Size (mm) | Light Fixture (without COB protective cap): 330×241×210mm/13.0×9.5×8.3″ Power Supply: 146×125×344mm/5.7×4.9×13.5″ CC-ST-EV900C Trolley Case: 760×440×290mm/29.9×17.3×11.4″ |
| Product Weight (kg) | Light Fixture: 7.7kg/16.98lb Yoke: 1.84kg/4.06lb Power Supply: 4.5kg/9.92lb RF-NLM-45 Reflector: 0.62kg/1.37lb DC Connection Cable 7.5M: 0.88kg/1.94lb AC Power Cable 6M: 2.62kg/4.98lb CC-ST-EV900C Trolley Case (without fixture): 6.9kg/15.21lb Evoke 900C ST-KIT (with fixture): 26.5kg/58.42lb |
| Packing Quantity | 1 |
| Master Carton Size (mm) | 810×465×350mm/31.89×18.31×13.78″ |
