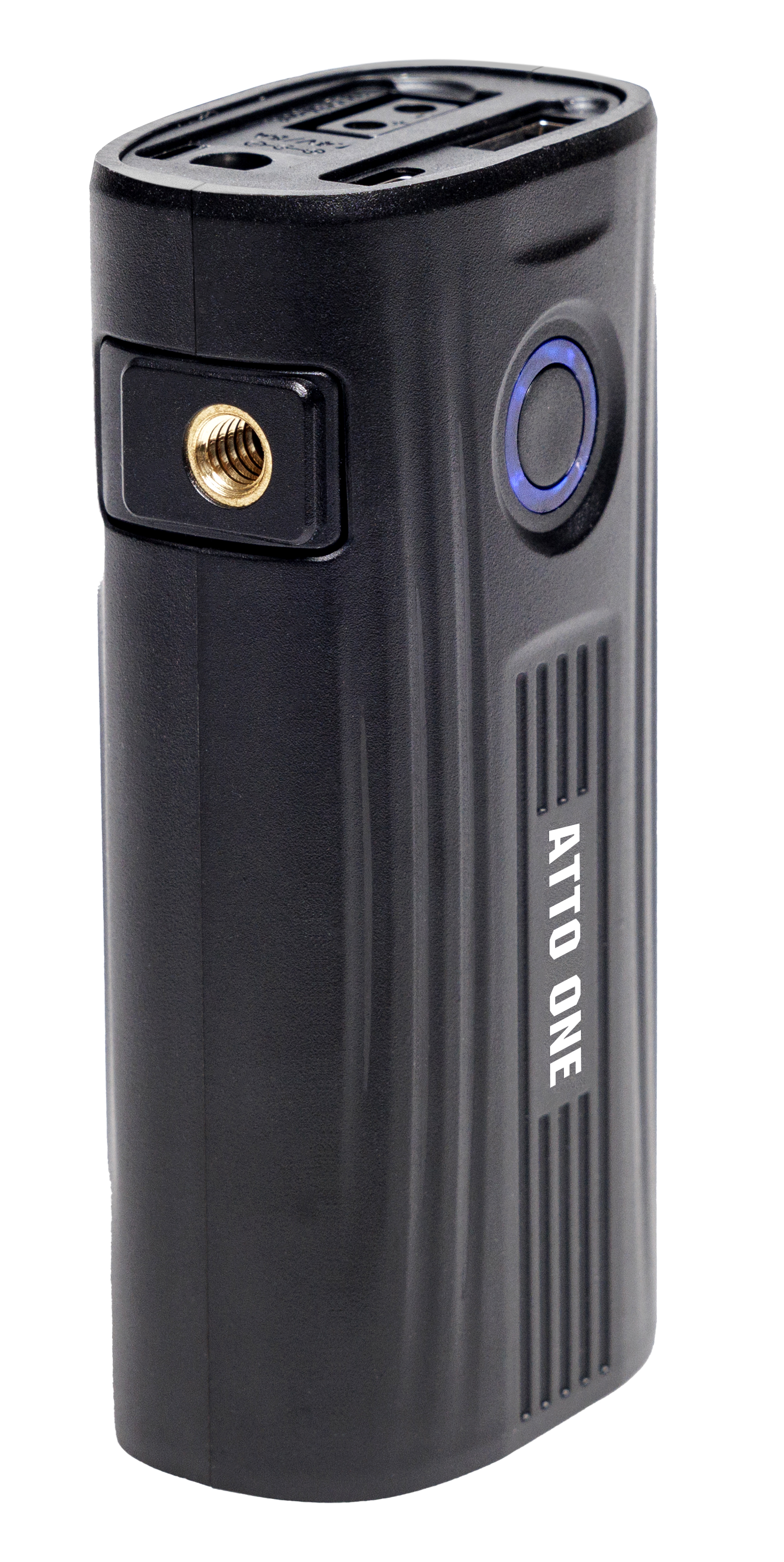

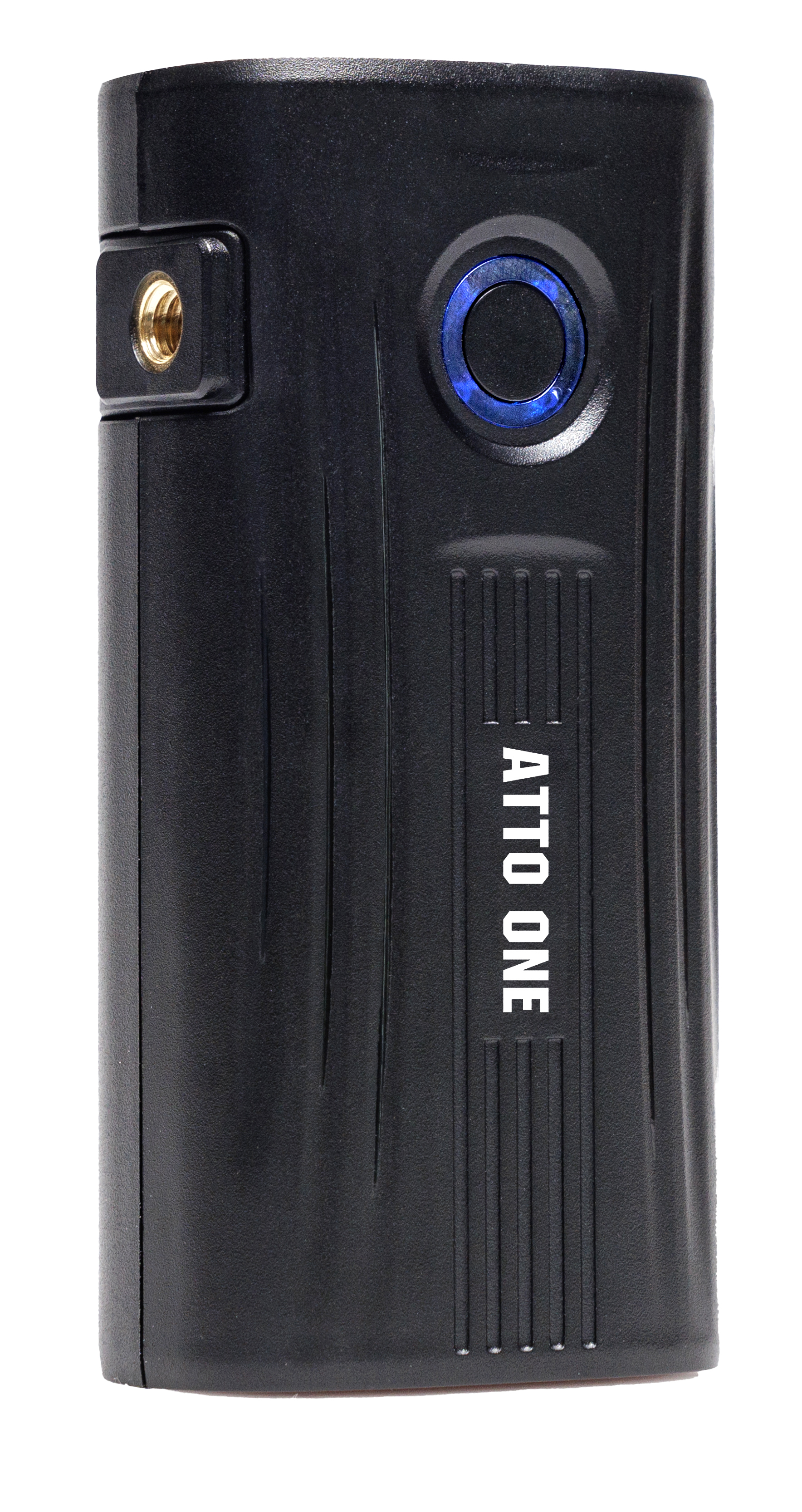

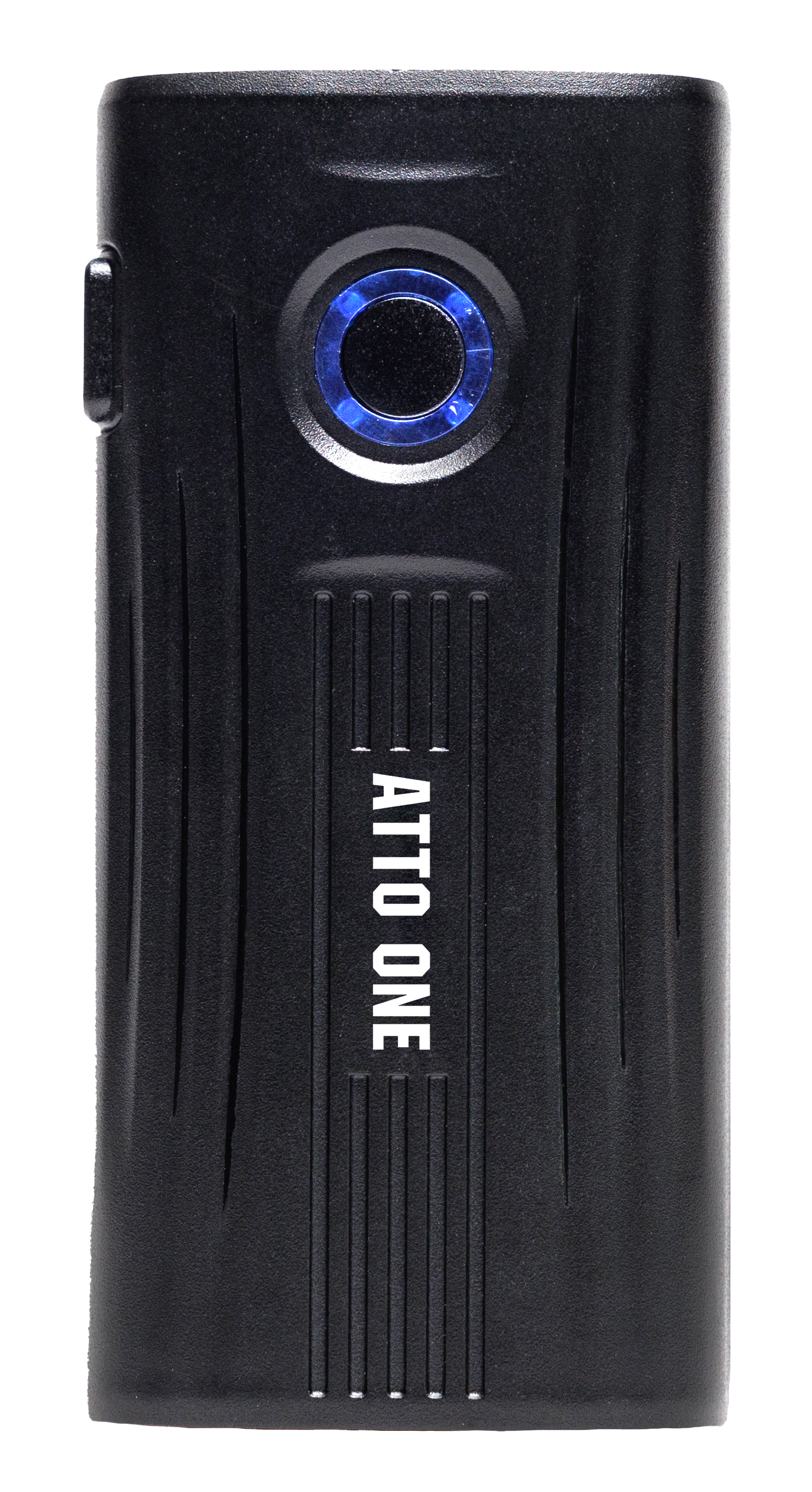

ATTO ONE is the smallest FX Lion battery and is the perfect companion for your camera rig, gimbal, LED light or even your smartphone and laptop. The battery is super small and weighs only 220 gram. It has a 37Wh capacity.
The ATTO ONE Battery is FX Lion’s most compact battery pack. It is designed to be used with gimbals, camera rigs, or anything else that needs power. Due to its compact size, the ATTO ONE is perfect when setups need to be as compact as possible. It features a barrel DC socket with 7.7V output, USB-A and a USB-C socket.
On the side there is also a D-Tap socket available. On the back you can find a 1/4” thread for use with camera rigs or any other rig. You can only use USB-Chargers for charging. The D-Tap and other sockets are only outputs. Like all our batteries, it has a built-in protection circuit for protecting itself as well as all connected electronic devices.
There will be an aluminum holder available which the battery can just be slid into. It is a great enhancement, especially for gimbals and camera rigs. With 37Wh of capacity, it almost comes to our second-smallest battery, which is the NANO ONE (50Wh). A four level LED status indicator shows the capacity status as well as if the battery is being charged or discharged. You can also use the NANO-Hub in combination to further convert voltages and connection possibilities.
Specifications
Capacity：5.0Ah/7.4V /37Wh
USB-A: 5V/2A
USB-C: 5V/3A 9V/3A 12V/3A 15V/3A 20V/2.2A
D-Tap: 12V/3A（Max）
φ2.1 DC：7.4V/5A（Max）
USB-A+USB-C+D-Tap+φ2.1DC：74W（Max）
4 channels can work at the same time, total output is 74W(Max)
Charge: only by USB-C,5V/3A 9V/3A 12V/3A 15V/2A 20V/1.5A
Indicator: 4-Level LED indicators
Dimension：50.7mm(L)*35mm(W)*104.5mm(H)
Weight：220g
1/4 inch fixed thread: 1x horizontal / 1x vertical
